Remove/Install WiFi Antenna In Center Of Instrument Panel - AR82.85-P-0013LW
Model 213, 238
as of model year 2021
with code 549 (Connect 20 HIGH (NTG6))
Shown on model 238.3 with code 801 (Year Model 20/1)

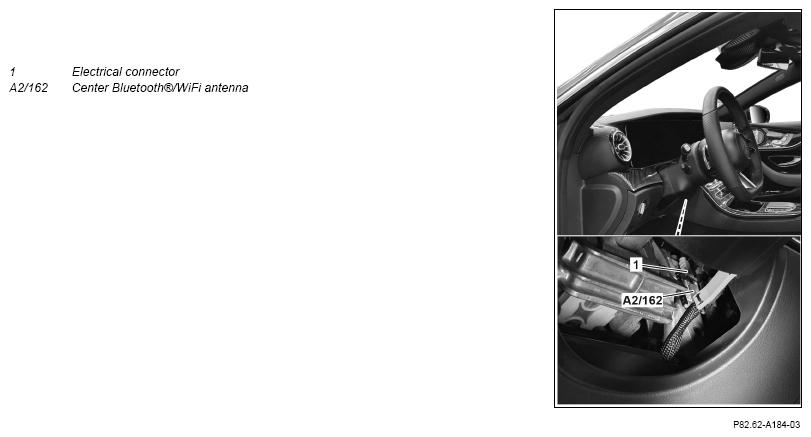

Fig 1: WiFi Antenna In Center Of Instrument Panel Components Location - Model 213 As Of Model Year 2021 With Code 549 (Shown On Model 238.3)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove steering column module. | AR54.25-P-2802LW | |
| 2 | Remove center Bluetooth®/WiFi antenna (A2/162) from crossmember. | Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. |
Fig 2 |
| 3 | Release and disconnect electrical connector (1) and remove center Bluetooth®/WiFi antenna (A2/162). | ||
| 4 | Install in the reverse order. |
