Remove/Install WiFi Antenna - AR82.85-P-0004LWE
Model 213
with code 531 (COMAND APS)
A2/83 WiFi antenna
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

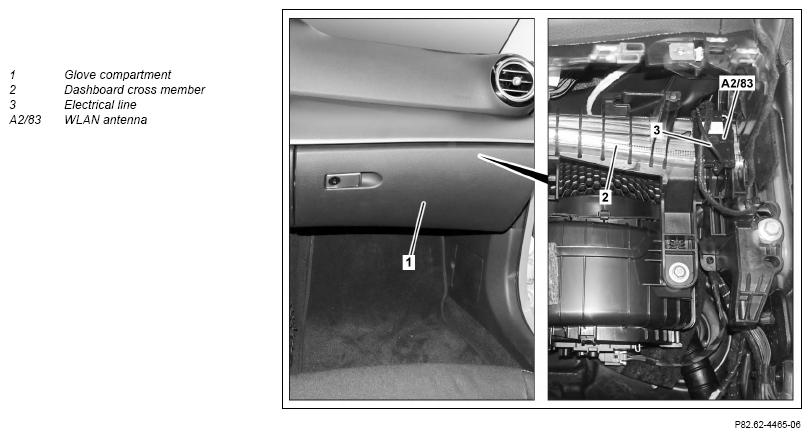

| 1 | Remove glove compartment (1) | AR68.10-P-1402LWE | |
| 2 | Remove head unit (4) far enough until electrical connectors on rear of device are accessible | AR82.85-P-1101LWE | |
| 3 | Put down head unit (4) with connected electrical lines | Place head unit (4) on a clean dry cloth Otherwise components of the instrument panel or center console may be damaged. |
|

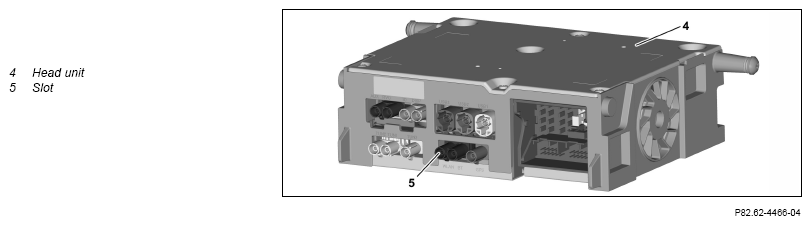

| 4 | Disconnect electrical line (3) of WiFi antenna (A2/83) from slot (5) of head unit (4) | ||
| 5 | Cut through electrical line (3) of WiFi antenna (A2/83) at both ends as near to the instrument panel wiring harness as possible | ||
| 6 | Remove cut off section of the factory installed electrical line (3) | ||
| 7 | Unclip WiFi antenna (A2/83) from instrument panel crossmember (2) and take off | ||
| Install | |||
| 8 | Clip in new WiFi antenna (A2/83) into instrument panel crossmember (2) | ||
| 9 | Route electrical line (3) of new WiFi antenna (A2/83) along the instrument panel wiring harness to the device installation slot of the head unit (4) and fix in place with cable ties | ||
| 10 | Connect electrical line (3) of new WiFi antenna (A2/83) to slot (5) of head unit (4) | ||
| 11 | Install head unit (4) | AR82.85-P-1101LWE | |
| 12 | Install glove compartment (1) | AR68.10-P-1402LWE |
