Remove/Install Telephone Antenna Splitter - AR82.70-P-8956LWE
Model 213, 238
with code 379 (Telephone module with Bluetooth® (SAP profile))
Model 213, 238
with code 380 (Car telephony package)
Model 213, 238
with code 386 (Comfort telephony)
Model 213, 238
with code 899 (Multifunction telephony)
Model 213
with code 344 (Antenna preinstallation for taxi)
Model 238
with code 362 (HERMES communications module LTE)
Model 238
with code 503 (Remote-controlled parking)
Model 238
with code B24 (Remote control for Auxiliary heating)
Shown on model 213 with code 581 (Automatic air conditioning)

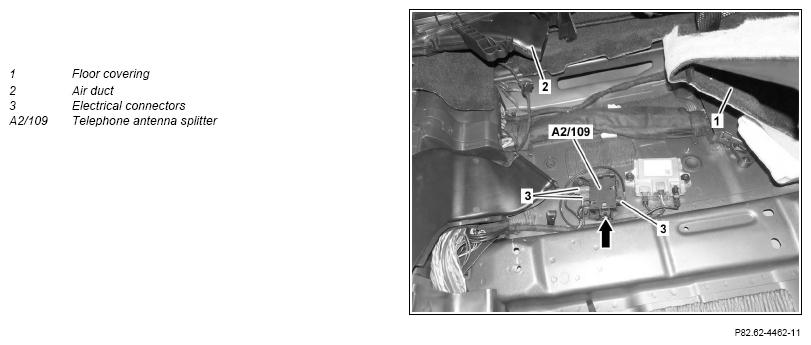

Fig 1: Telephone Antenna Splitter Components Location - Model 213 With Codes 379; 380; 386; 899; 344 (Shown With Code 581)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left door sill moldings | Model 238 | AR68.30-P-4100CLW |
| Model 213 | AR68.30-P-4100LW | ||
| 2 | Remove left front seat | AR91.10-P-1000LW | |
| 3 | Detach lower left B-pillar trim | Model 213 | |
| 4 | Loosen floor covering (1) in area of left front seat and fold to one side | ||
| 5 | Unclip air duct (2) and place to one side | Model 213 with code 581 (Automatic air conditioning) | |
| 6 | Unclip telephone antenna splitter (A2/109) from the bracket (arrow) | ||
| 7 | Remove telephone antenna splitter (A2/109) and disconnect electrical connectors (3) | ||
| 8 | Install in the reverse order |
