Remove/Install Taxi Antenna - AR82.71-P-0001LWE

Model 213

with code 356 (Radio frequency antenna)

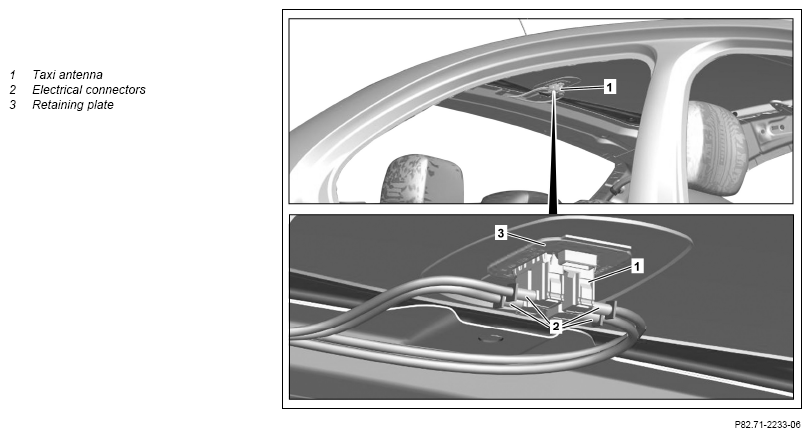

Fig 1: Taxi Antenna Components Location - Model 213 With Code 356

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove headliner	Model 213.2 with code 356 (Radio frequency antenna)	AR68.30-P-4300LWS
		Model 213.0 with code 356 (Radio frequency antenna)	AR68.30-P-4300LWE
2	Remove retaining plate (3)
3	Separate electrical connectors (2)
4	Remove taxi antenna (1) from outside
5	Install in the reverse order
