Remove/Install Taillamp Unit On Trunk Lid - AR82.10-P-4927LW
Model 213.0/1
as of model year 2021

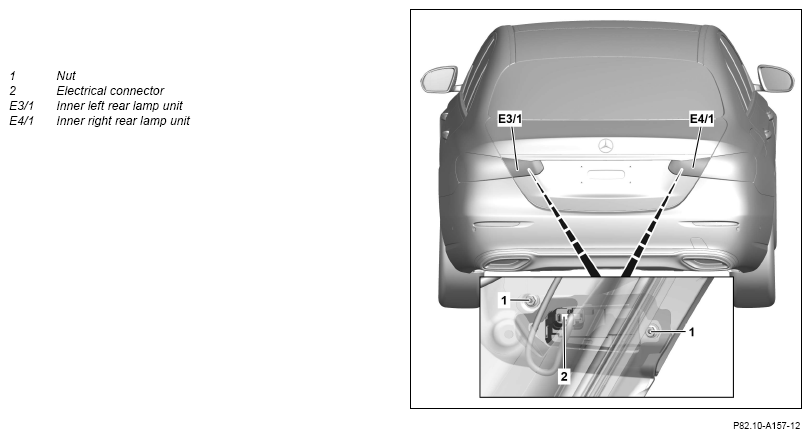

Shown on model 213.0
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trunk lid trim. | AR68.30-P-8151LWE | |
| 2 | Remove nuts (1). | ||
| 3 | Remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) until the electrical connector (2) is accessible. | Do not crush or kink or subject lines to tension. This leads to line damage. |
|
| 4 | Release and disconnect electrical connector (2) of inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1). | ||
| 5 | Install in the reverse order. |
