Remove/Install TV Antenna Amplifier Under Right A-Pillar Trim - AR82.62-P-8305LWE
Model 213.0/1, 238.3
with code 865 (digital TV)

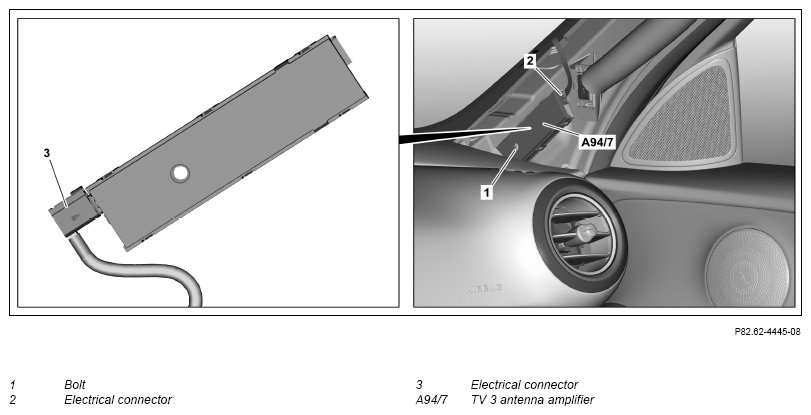

Fig 1: TV Antenna Amplifier Under Right A-Pillar Trim Components Location - Model 213.0 With Code 865
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove paneling on right A-pillar | Model 238.3 with code 865 (digital TV) | AR68.30-P-4050LWO |
| Model 213.0/1 with code 865 (digital TV) | AR68.30-P-4050LW | ||
| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove bolt (1) | ||
| 4 | Unclip TV 3 antenna amplifier (A94/7) at A-pillar and disconnect electrical connection (3) | ||
| 5 | Install in the reverse order |
