Remove/Install TV Antenna Amplifier Under Left A-Pillar Trim - AR82.62-P-8308LWT
Model 213.2
with code 865 (digital TV)

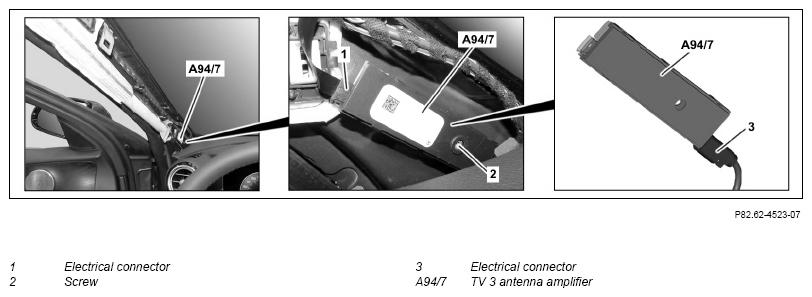

Fig 1: TV Antenna Amplifier Under Left A-Pillar Trim Components Location - Model 213.2 With Code 865
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213.2 with code 865 (digital TV) with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left A-pillar trim panel | AR68.30-P-4050LW | |
| 2 | Disconnect electrical connection (1) | ||
| 3 | Remove bolt (2) | ||
| 4 | Unclip TV 3 antenna amplifier (A94/7) at A-pillar and disconnect electrical connector (3) | ||
| 5 | Install in the reverse order |
