Remove/Install Satellite Radio Antenna - AR82.60-P-7547LWT
Model 213.2
with code 536 (Sirius satellite radio complete system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213.2 with code 536 (Sirius satellite radio complete system) with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper liftgate paneling | AR72.20-P-6631LWS | |

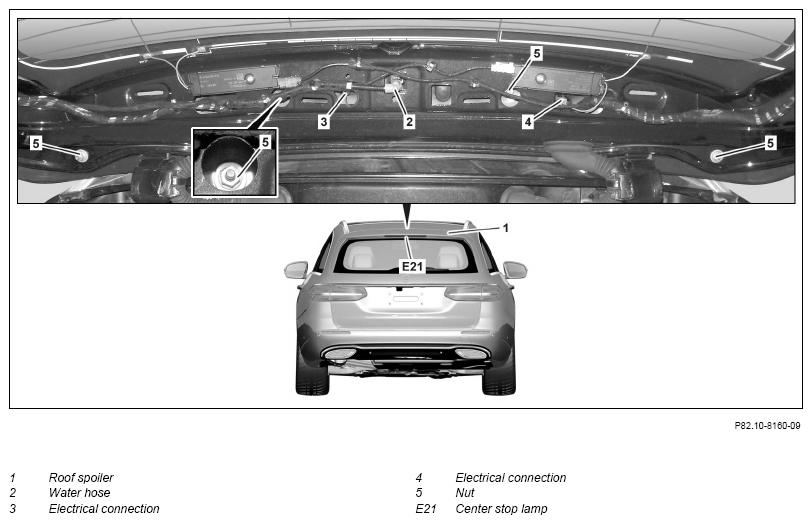

| 2 | Remove water hose (2) from spray nozzle | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Disconnect electrical connection (4) | ||
| 5 | Unscrew nuts (5) and remove roof spoiler (1) together with center brake lamp (E21) | ||

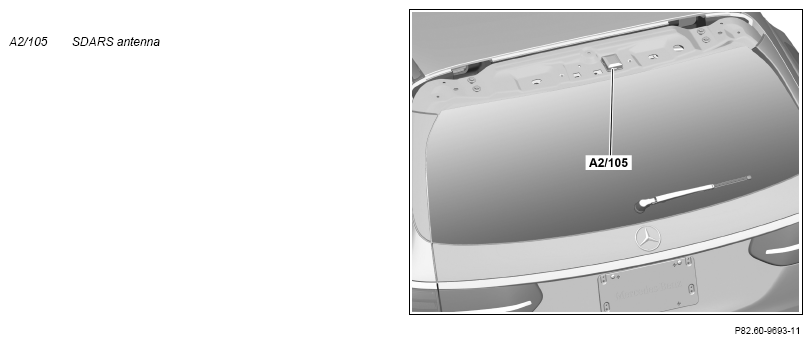

| 6 | Unclip SDARS antenna (A2/105) from liftgate and remove far enough to gain access to the electrical connector | ||
| 7 | Disconnect electrical connector and remove SDARS antenna (A2/105) | ||
| 8 | Install in the reverse order |
