Remove/Install Remote Park-Pilot/Stationary Heater Antenna Splitter - AR82.70-P-0006LWT
Model 213.2
with code 503 (Remote-controlled parking)
with code B24 (Remote control for Auxiliary heating)

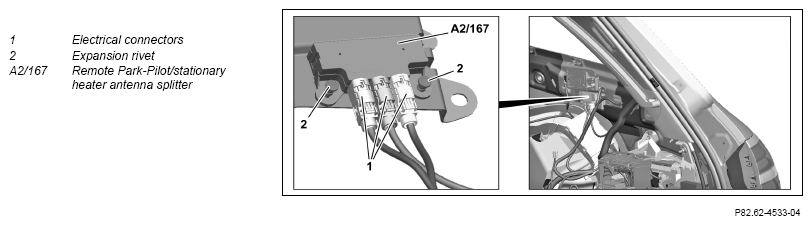

Fig 1: Remote Park-Pilot/Stationary Heater Antenna Splitter Components Location - Model 213.2 With Codes 503; B24
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 213.2 with code 503 (Remote-controlled parking) with code B24 (Remote control for Auxiliary heating) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove right side load compartment paneling | AR68.30-P-1185LWE | |
| 2 | Separate electrical connections (1) | ||
| 3 | Remove expansion rivets (2) and take off Remote Parking Pilot/stationary heater antenna splitter (A2/167) | ||
| 4 | Install in the reverse order |
