Remove/Install Rear Taillamp Unit - AR82.10-P-4731LW

Model 213.0/1

as of model year 2021

Shown on model 213.0

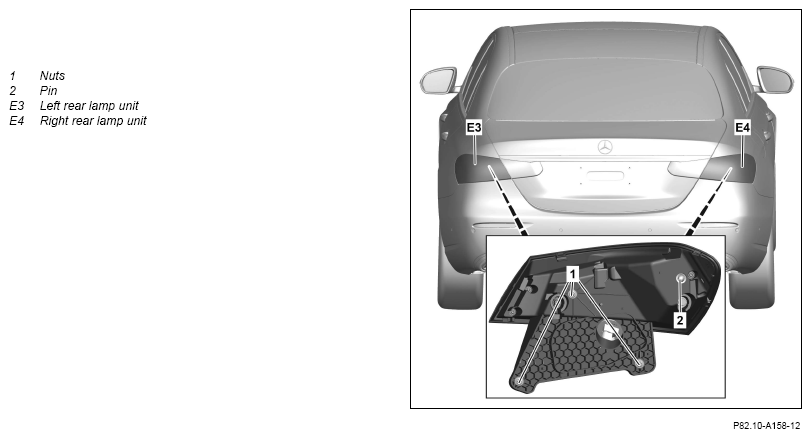

Fig 1: Rear Taillamp Unit Components Location - Model 213.0 As Of Model Year 2021

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2.1	Remove left or right side trim in trunk until nuts (1) are accessible.	Model 213 0/1 as of model year 2021 except code 811 (High-End sound system) : Ensure that edge guard is positioned correctly.	AR68.30-P-4800LWE
2.2	Remove subwoofer.	Model 213.0/1 as of model year 2021 with code 811 (High-End sound system) When removing left rear lamp unit (E3).	AR82.62-P-7841LWE
3	Release and disconnect electrical connector from rear left lamp unit (E3) or rear right lamp unit (E4).
4	Remove nuts (1).
5	Remove left rear lamp unit (E3) or right rear lamp unit (E4).	: Ensure that pin (2) is positioned correctly.
6	Install in the reverse order.
