Remove/Install Radio Antenna Amplifier - AR82.62-P-8306LWE

Model 213.0/1

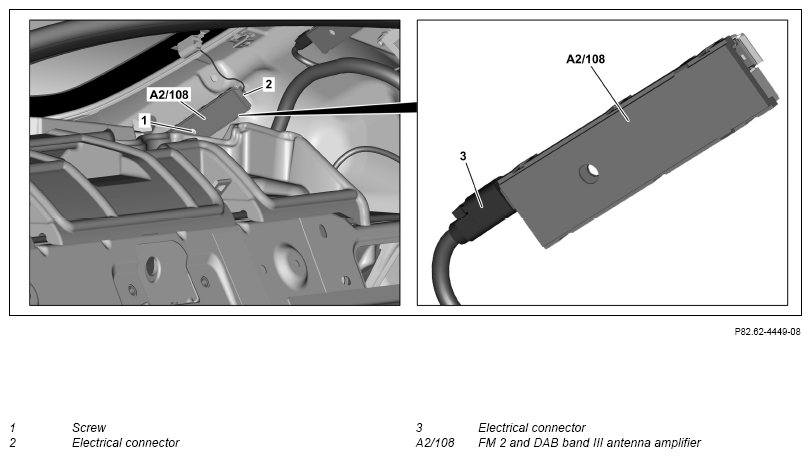

Fig 1: Radio Antenna Amplifier Components Location - Model 213.0

Courtesy of MERCEDES-BENZ USA

Shown on model 213.0

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove rear shelf	Model 213.0	AR68.30-P-4581LW
1.2	Remove left C-pillar trim	Model 213.1	AR68.30-P-4491LWV
2	Disconnect electrical connection (2)
3	Remove bolt (1)	The screw/bolt (1) remains on the FM 2 and DAB band III antenna amplifier (A2/108).
4	Unclip FM 2 and DAB band III antenna amplifier (A2/108) at C-pillar and disconnect electrical connector (3)
5	Install in the reverse order
