Remove/Install NFC Antenna - AR82.62-P-0004LWE
Model 213, 238 with transmission 725
with code 897 (Front wireless telephone charging)
Model 213, 238 with transmission 725
with code 899 (Multifunction telephony)

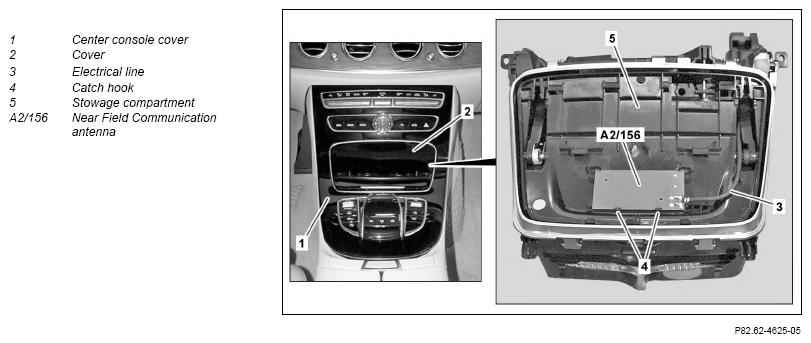

Fig 1: Near Field Communication/NFC Antenna Components Location - Model 213 With Transmission 725 With Codes 897; 899
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center console cover (1) | Model 213 with transmission 725 with code 897 (Front wireless telephone charging) Model 213 with transmission 725 with code 899 (Multifunction telephony) |
AR68.20-P-2350LW |
| Model 238 with transmission 725 with code 897 (Front wireless telephone charging) Model 238 with transmission 725 with code 899 (Multifunction telephony) |
AR68.20-P-2350LWO | ||
| 2 | Disassemble stowage compartment (5) from center console cover (1) | ||
| 3 | Unclip and remove cover (2) to rear, opposite direction of travel, from stowage compartment (5) | Do not use sharp-edged tools. Otherwise, the cover (2) may be damaged. Check the cover (2) is in the correct position before clipping it into place. Otherwise, the fasteners and the cover (2) may be damaged. |
|
| 4 | Disconnect electrical connector from mobile phone cradle control unit and expose electric line (3) | ||
| 5 | Release catch hooks (4), then route out and remove Near Field Communication antenna (A2/156) with electric line (3) | ||
| 6 | Install in the reverse order |
