Remove/Install License Plate Lamps - AR82.10-P-5161LWS
Model 205.2
Model 213.2
Model 253.1/9
Shown on MODEL 205.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove center liftgate trim. | AR72.20-P-6618LWS | |

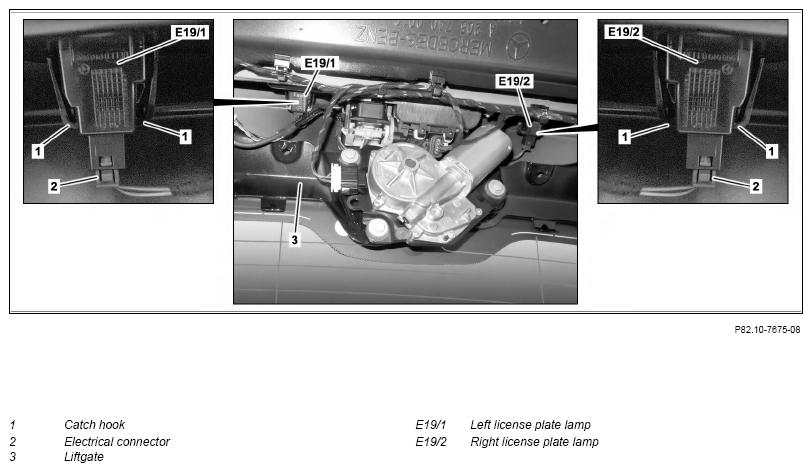

| 2 | Press catch hooks (1) together and remove left license plate lamp (E19/1) or right license plate lamp (E19/2). | ||
| 3 | Disconnect electrical connector (2) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2). | ||
| 4 | Install in the reverse order. |
