Remove/Install Gesture Camera - AR82.90-P-0003LW
Model 213, 238.3
as of model year 2021
with code 77B (Contactless gesture control at front)
Shown on model 238.3

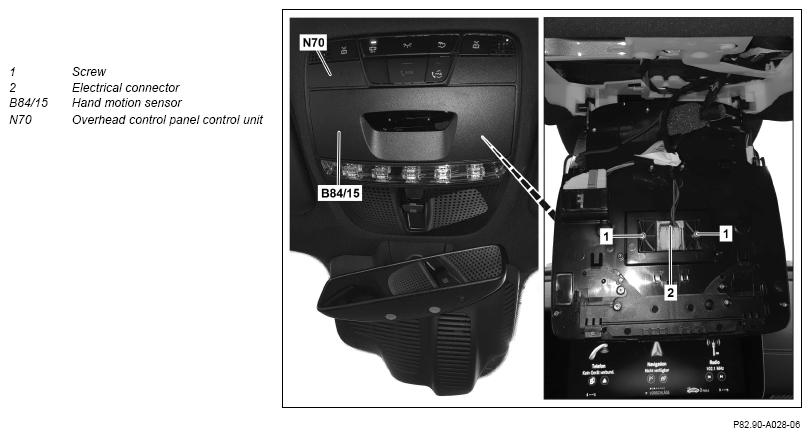

Fig 1: Gesture Camera Components Location - Model 213 As Of Model Year 2021 With Code 77B (Shown On Model 238.3)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove overhead control panel control unit (N70) until electrical connector (2) is accessible. | Model 213 as of model year 2021 with code 77B (Contactless gesture control at front) | AR82.20-P-1000LF |
| Model 238.3 as of model year 2021 with code 77B (Contactless gesture control at front) | AR82.20-P-1000LWO | ||
| 2 | Release and disconnect electrical connector (2) of hand motion sensor (B84/15). | ||
| 3 | Unscrew screws (1) and remove hand motion sensor (B84/15). | ||
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of hand motion sensor (B84/15). | When replacing hand motion sensor (B84/15). | |
| Model 213 as of model year 2021 with code 77B (Contactless gesture control at front) | AD00.00-P-2000-04B | ||
| Model 238.3 as of model year 2021 with code 77B (Contactless gesture control at front) | AD00.00-P-2000-06LWO |
