Remove/Install Front Door Speakers In Mirror Triangle - AR82.62-P-7850LWE

Model 213

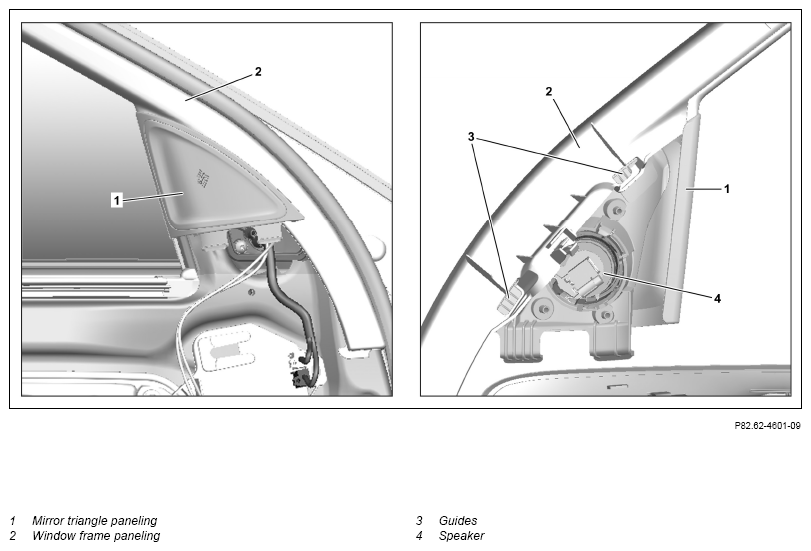

Fig 1: Front Door Speakers In Mirror Triangle Components Location - Model 213 (Left Side Shown Except Code 811)

Courtesy of MERCEDES-BENZ USA

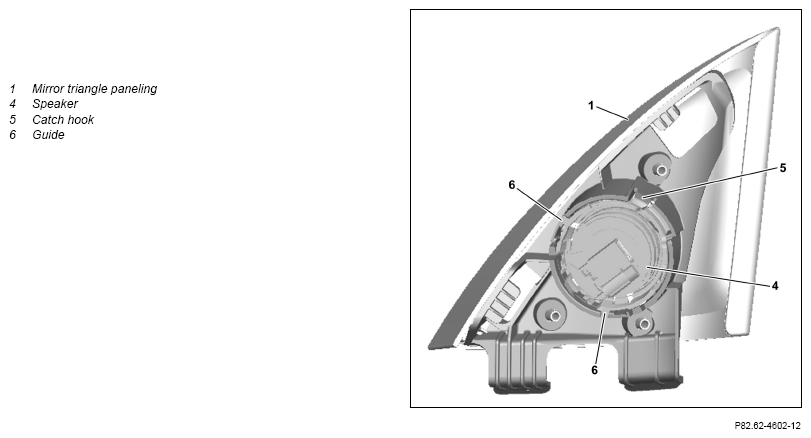

Shown on left mirror triangle cover (1) except code 811 (Advanced Sound System)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

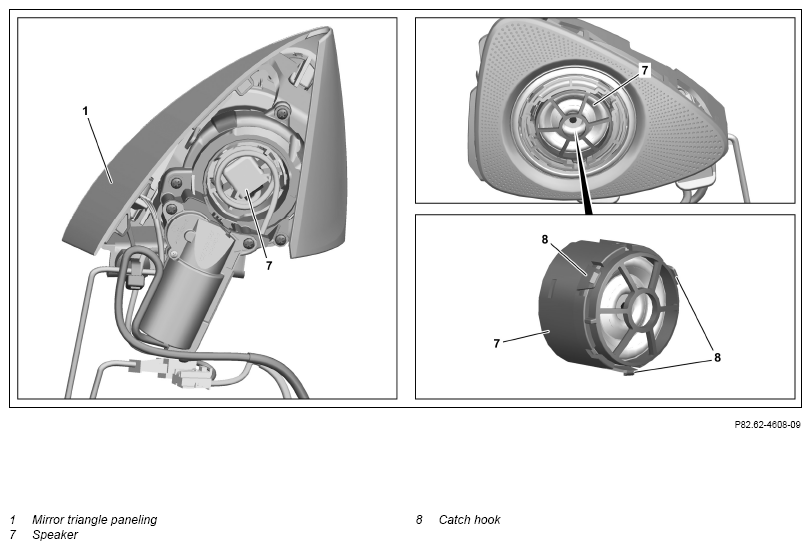

Shown on left mirror triangle cover (1) with code 811 (Advanced Sound System)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Release door lining from each front door and put down carefully	Do not remove door lining completely.	AR72.10-P-1000LW
2	Extend mirror triangle cover (1) as far back out of the window frame cover (2) until the rear side of the speaker (4) is accessible	: Check guides (3) on window frame cover (2) are correctly seated.
3.1	Operate catch hook (5) and remove speaker (4) from mirror triangle cover (1)	Model 213 except code 811 (Advanced sound system) Note assembly positions of guides (6) for speaker (4) on mirror triangle cover (1).
3.2	Expose speaker (7) release catch hooks (8) of speaker (7) and remove speaker (7) from mirror triangle cover (1)	Model 213 with code 811 (Advanced sound system) Note assembly position of speaker (7) on mirror triangle cover (1).
4	Release and disconnect electrical connector of speaker (4 or 7)
5	Install in the reverse order
