Remove/Install FM 2, DAB And TV 2 Antenna Amplifier - AR82.62-P-8309LWT
Model 213.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 213.2 with code P17 (KEYLESS-GO package) | AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper liftgate paneling | AR72.20-P-6631LWS | |

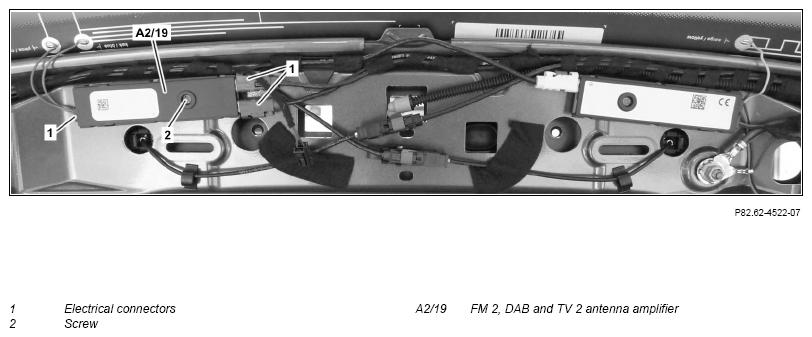

| 2 | Separate electrical connections (1) | ||
| 3 | Remove screw/bolt (2) and remove FM 2, DAB and TV 2 antenna amplifier (A2/19) | ||
| 4 | Install in the reverse order |
