Remove/Install Dedicated Short-Range Communications/DSRC Antenna - AR82.88-P-0004LWE
Model 213
with code 498 (Japanese version)

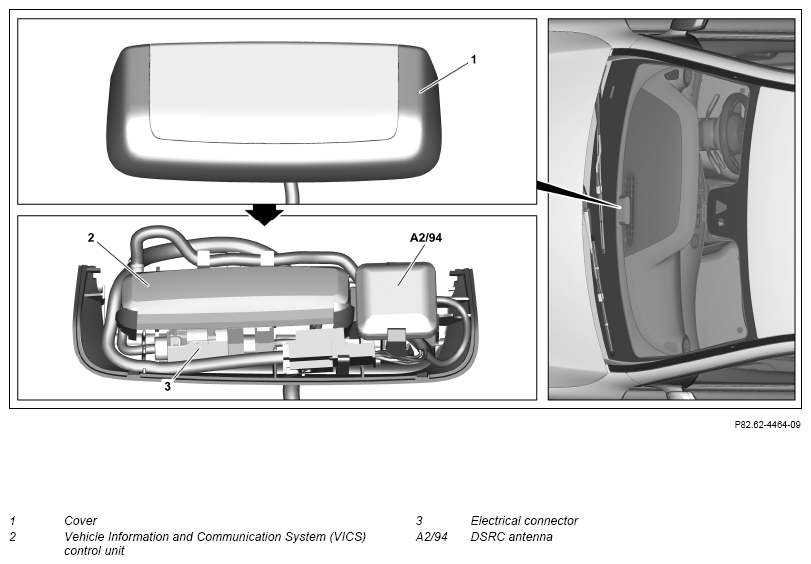

Fig 1: Dedicated Short-Range Communications/DSRC Antenna Components Location - Model 213 With Code 498
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Unclip cover (1) | ||
| 2 | Unclip Vehicle Information and Communication System (VICS) control unit (2) and place to one side with line connected | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unclip DSRC antenna (A2/94) and remove | ||
| 5 | Install in the reverse order |
