Check, Adjust Low Beams - AP82.10-P-8263NA

Model 213

with code 460 (Canada version)

with code 620 (Halogen headlights with integrated LED daytime running lights)

except code 632 (Headlamps, LED, static, right-side traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 213

with code 494 (US version)

with code 620 (Halogen headlights with integrated LED daytime running lights)

except code 632 (Headlamps, LED, static, right-side traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 238

with code 460 (Canada version)

except code 632 (Headlamps, LED, static, right-side traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

Model 238

with code 494 (US version)

except code 632 (Headlamps, LED, static, right-side traffic)

except code 642 (Dynamic LED headlamps, right-hand traffic)

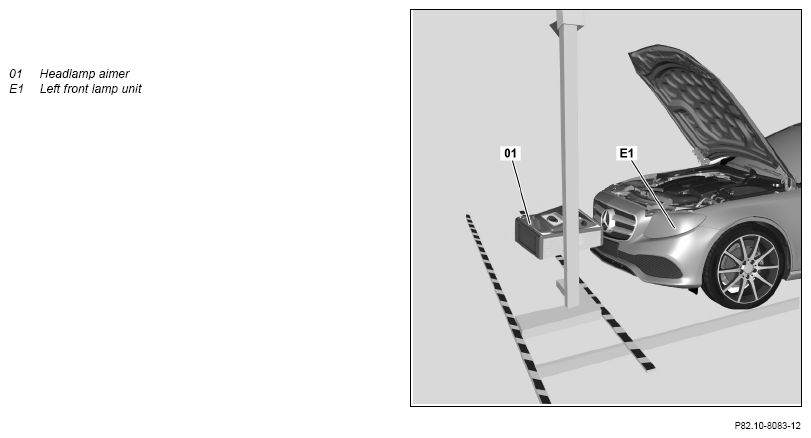

Shown on model 213

Courtesy of MERCEDES-BENZ USA

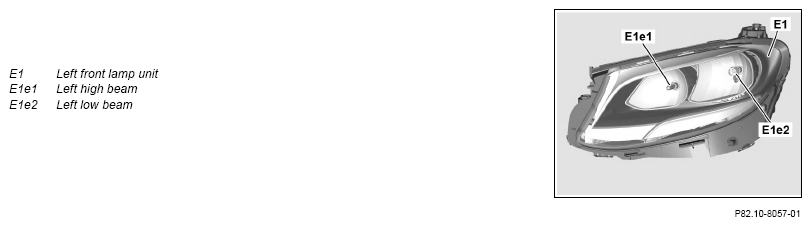

Halogen headlamp, SAE version, shown on model 213

Courtesy of MERCEDES-BENZ USA

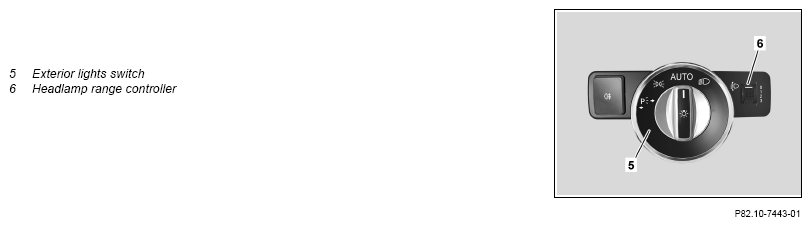

Shown on general headlamp range controller

Courtesy of MERCEDES-BENZ USA

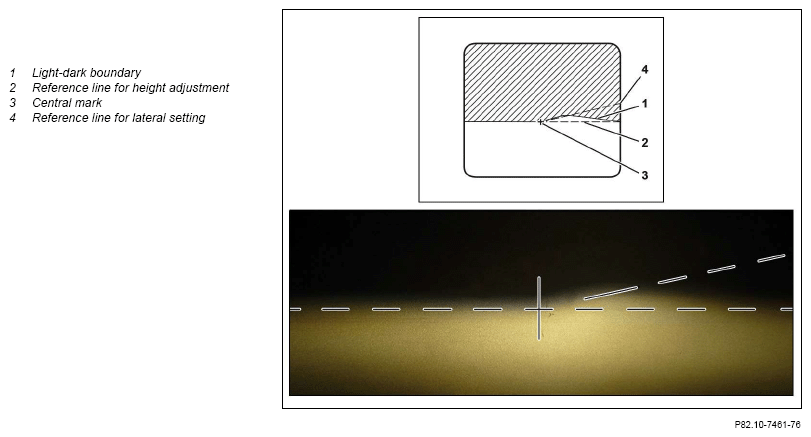

Light gradient for low beams

Courtesy of MERCEDES-BENZ USA

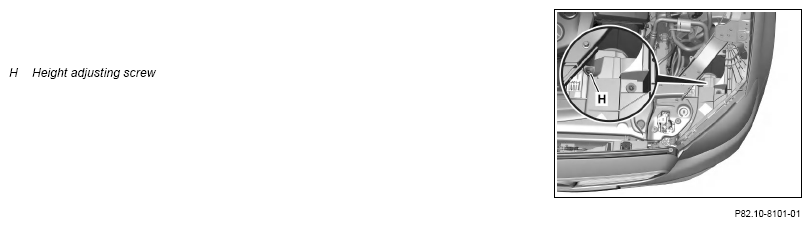

Shown on model 213

Courtesy of MERCEDES-BENZ USA

	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory activity
1	Check operation of headlamp range adjustment	On vehicle with a headlamp range adjuster (6).	AP82.10-P-8250EW
2	Prepare vehicle for checking/correcting headlamp adjustment		AP82.10-P-8260-10H
3	Determine degree of inclination for main headlamps Notes on determining headlamp aiming values		AH82.10-P-1005-01A
		The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side.
4	Set specified degree of inclination for main headlamps on headlamp aimer (01)
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B
5	Switch on low beam
	Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (E1e2); the same procedure is used for the right side.)
6	Check height adjustment of left low beam headlamp (E1e2); adjust if necessary
	000 588 11 21 00 Adjustment device	If, for a low beam light gradient, the height adjustment is correct, the light-dark boundary (1) of the left low beam headlamp (E1e2) in each case to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2), as shown in the color image. If height adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 7. If height adjustment of left low beam (E1e2) is not correct. ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2).	WS82.00-P-0151B
7	Check lateral adjustment of left low beam (E1e2)
	000 588 11 21 00 Adjustment device	If, for a low beam light gradient, the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (E1e2) starting from the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the lateral adjustment (4), as shown in the color image. If lateral adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 8. If lateral adjustment of the left low beam headlamp (E1e2) is not correct. ↓ Check and correct the installation position of the headlamp concerned, subject to separate repair order. Then process operation steps 2_to_7 again.	WS82.00-P-0151B
		Model 213.0/1/2 with code 460 (Canada version) with code 620 (Halogen headlights with integrated LED daytime running lights) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 213.0/1/2 with code 494 (US version) with code 620 (Halogen headlights with integrated LED daytime running lights) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Engine hood to headlamp	*BE60.00-P-1002-01GA
		Model 213.0/1/2 with code 460 (Canada version) with code 620 (Halogen headlights with integrated LED daytime running lights) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 213.0/1/2 with code 494 (US version) with code 620 (Halogen headlights with integrated LED daytime running lights) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Bumper to headlamp	*BE60.00-P-1006-01GA
		Model 238.3 with code 460 (Canada version) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 238.3 with code 494 (US version) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Engine hood to headlamp	*BE60.00-P-1002-01HA
		Model 238.3 with code 460 (Canada version) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 238.3 with code 494 (US version) except code 632 (Headlamps, LED, static, right-side traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Bumper to headlamp	*BE60.00-P-1006-01HA
	Finishing activity
8	Reset switch positions to input condition	Only if the high beam setting is not to be checked afterwards.

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 213.0/1	Model 213.2
BE60.00-P-1002-01GA	Engine hood to headlamp	Dimension "B"	mm	5, (+1,)	5, (±1,)
		For picture, see		AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3
BE60.00-P-1002-01HA	Engine hood to headlamp	Dimension "B"	mm	7, (+ 1,)
		For picture, see		AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 213.0/1	Model 213.2
BE60.00-P-1006-01GA	Bumper to headlamp	Dimension "E"	mm	2 (±0, 5)	2 (±0, 5)
		For picture, see		AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3
BE60.00-P-1006-01HA	Bumper to headlamp	Dimension "E"	mm	2 (±0,)
		For picture, see		AR60.00-P-0700-01LWO
