Check, Adjust Low Beams - AP82.10-P-8263KA
Model 213, 238
with code 631 (Static LED headlamps, left-hand traffic)
except code 460 (Canada version)
except code 494 (US version)
Model 213, 238
with code 632 (Headlamps, LED, static, right-side traffic)
except code 460 (Canada version)
except code 494 (US version)

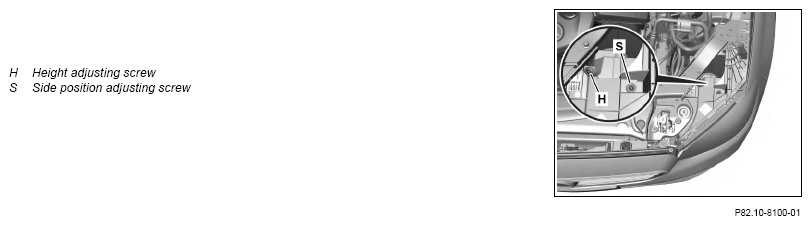

Shown on model 213

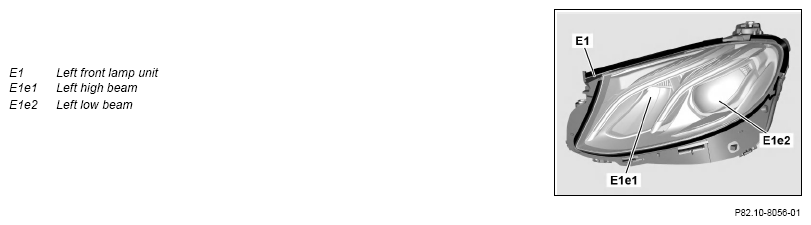

Static LED headlamp, ECE version, shown on model 213

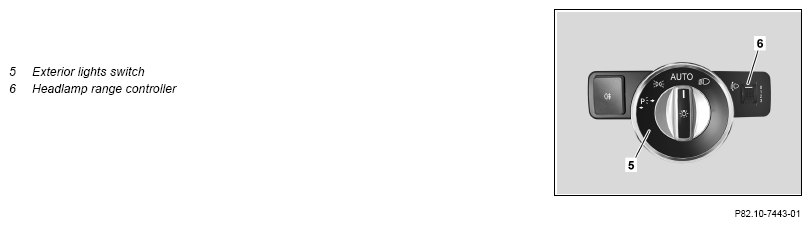

Shown on general headlamp range controller

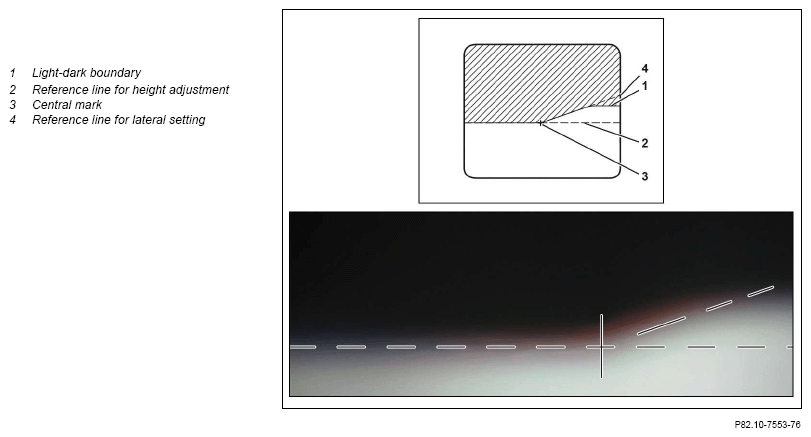

Light gradient for low beams

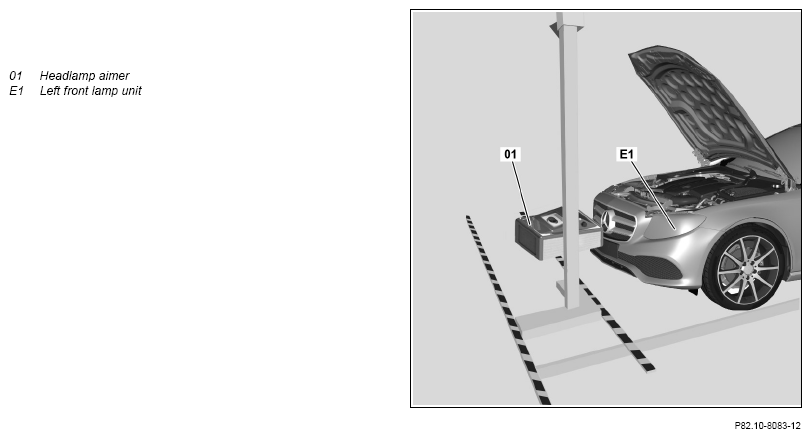

Shown on model 213
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Preparatory activity | |||
| 1 | Check operation of headlamp range adjustment | On vehicle with a headlamp range adjuster (6). | AP82.10-P-8250EW |
| 2 | Prepare vehicle for checking/correcting headlamp adjustment | AP82.10-P-8260-10H | |
| 3 | Determine degree of inclination for main headlamps Notes on determining headlamp aiming values |
AH82.10-P-1005-01A | |
| 4 | Set specified degree of inclination for main headlamps on headlamp aimer (01) | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 5 | Switch on low beam | ||
| Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (E1e2); the same procedure is used for the right side.) | |||
| 6 | Check height adjustment of left low beam headlamp (E1e2); adjust if necessary | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2), as shown in the color image. If height adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 7. If height adjustment of left low beam (E1e2) is not correct. ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2). |
|||
| 7 | Check lateral adjustment of left low beam headlamp (E1e2); adjust if necessary | ||
| 000 588 11 21 00 Adjustment device | The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the lateral adjustment (4), as shown in the color image. If lateral adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 8. If lateral adjustment of the left low beam headlamp (E1e2) is not correct. ↓ Turn the adjustment screw for the lateral adjustment(S) to correct the lateral adjustment of the left low beam headlamp (E1e2). |
WS82.00-P-0151B | |
| Finishing activity | |||
| 8 | Reset switch positions to input condition | Only if the high beam setting is not to be checked afterwards. |
