Check, Adjust Low Beams - AP82.10-P-8263CA

Model 213, 238

with code 460 (Canada version)

with code 632 (Headlamps, LED, static, right-side traffic)

Model 213, 238

with code 494 (US version)

with code 632 (Headlamps, LED, static, right-side traffic)

Shown on model 213

Courtesy of MERCEDES-BENZ USA

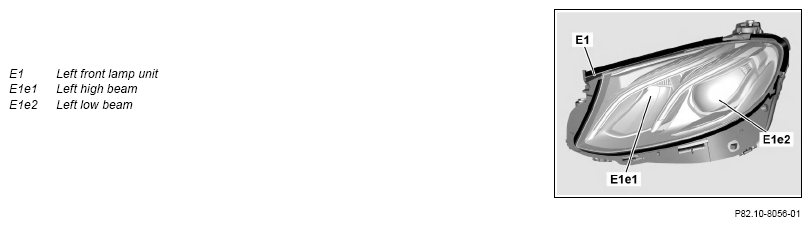

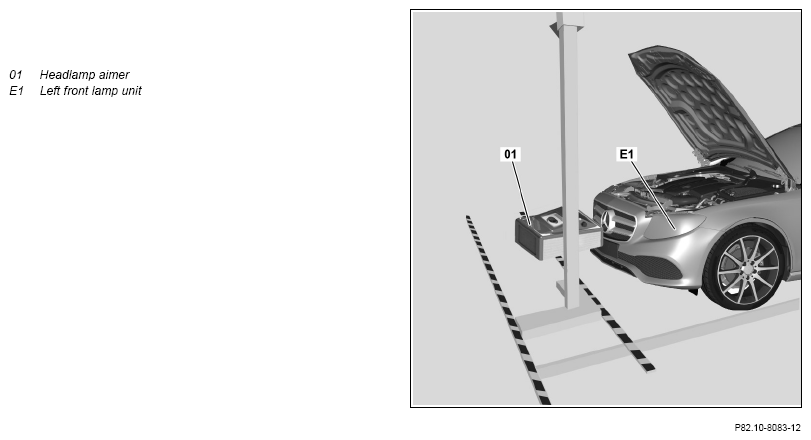

Static LED headlamp, SAE version, shown on model 213

Courtesy of MERCEDES-BENZ USA

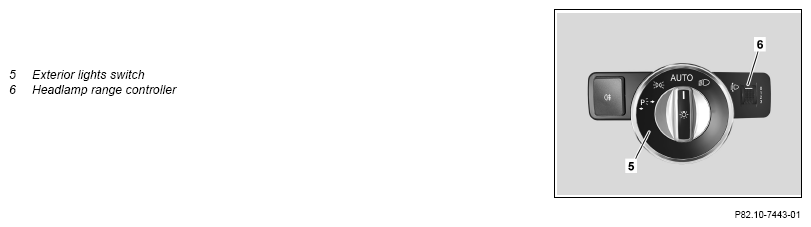

Shown on general headlamp range controller

Courtesy of MERCEDES-BENZ USA

Light gradient for low beams

Courtesy of MERCEDES-BENZ USA

Shown on model 213

Courtesy of MERCEDES-BENZ USA

	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory activity
1	Check operation of headlamp range adjustment	On vehicle with a headlamp range adjuster (6).	AP82.10-P-8250EW
2	Prepare vehicle for checking/correcting headlamp adjustment		AP82.10-P-8260-10H
3	Determine degree of inclination for main headlamps Notes on determining headlamp aiming values	The degree of inclination for the main headlamps is specified on the model plate on the B-pillar on the passenger side.	AH82.10-P-1005-01A
4	Set specified degree of inclination for main headlamps on headlamp aimer (01)
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B
5	Switch on low beam
	Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (E1e2); the same procedure is used for the right side.)

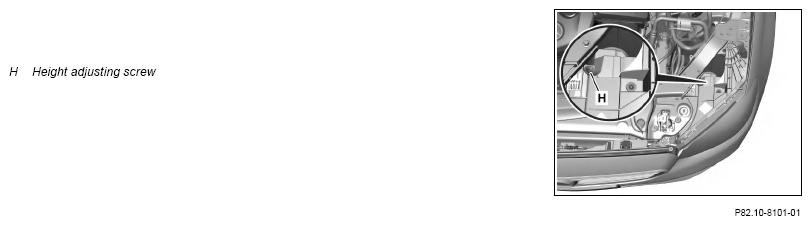

6	Check height adjustment of left low beam headlamp (E1e2); adjust if necessary
	000 588 11 21 00 Adjustment device		WS82.00-P-0151B

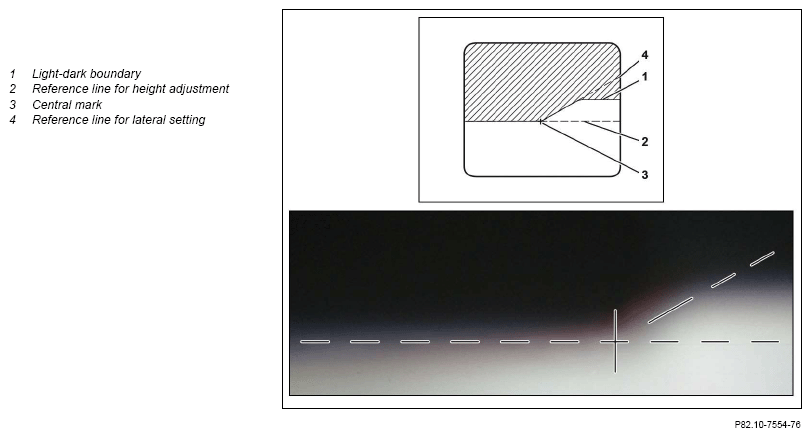

		If, for a low beam light gradient, the height adjustment is correct, the light-dark boundary (1) of the left low beam headlamp (E1e2) in each case to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2), as shown in the color image. If height adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 7. If height adjustment of left low beam (E1e2) is not correct. ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2).
7	Check lateral adjustment of left low beam (E1e2)
	000 588 11 21 00 Adjustment device	If, for a low beam light gradient, the lateral adjustment is correct, the light-dark boundary (1) of the light gradient for the left low beam headlamp (E1e2) starting from the center mark (3) on the right must be congruent with the reference line for the lateral adjustment (4) in the headlamp aimer (01), as shown in the color image. The colored area of the light-dark boundary (1) of the left low beam headlamp (E1e2) must be above the reference line for the lateral adjustment (4), as shown in the color image. If lateral adjustment of left low-beam headlamp (E1e2) is correct. ↓ No further check necessary, continue with operation step 8. If lateral adjustment of the left low beam headlamp (E1e2) is not correct. ↓ Check and correct the installation position of the headlamp concerned, subject to separate repair order. Then process operation steps 2 to 7 again.	WS82.00-P-0151B
		Model 213.0/1/2 with code 460 (Canada version) with code 632 (Headlamps, LED, static, right-side traffic) Model 213.0/1/2 with code 494 (US version) with code 632 (Headlamps, LED, static, right-side traffic) Engine hood to headlamp	*BE60.00-P-1002-01GA
		Model 213.0/1/2 with code 460 (Canada version) with code 632 (Headlamps, LED, static, right-side traffic) Model 213.0/1/2 with code 494 (US version) with code 632 (Headlamps, LED, static, right-side traffic) Bumper to headlamp	*BE60.00-P-1006-01GA
		Model 238.3 with code 460 (Canada version) with code 632 (Headlamps, LED, static, right-side traffic) Model 238.3 with code 494 (US version) with code 632 (Headlamps, LED, static, right-side traffic) Engine hood to headlamp	*BE60.00-P-1002-01HA
		Model 238.3 with code 460 (Canada version) with code 632 (Headlamps, LED, static, right-side traffic) Model 238.3 with code 494 (US version) with code 632 (Headlamps, LED, static, right-side traffic) Bumper to headlamp	*BE60.00-P-1006-01HA
	Finishing activity
8	Reset switch positions to input condition	Only if the high beam setting is not to be checked afterwards.
