Remove Inner C-Pillar Side Wall - Ar63.10-P-0700-01LWE

Model 213.0

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

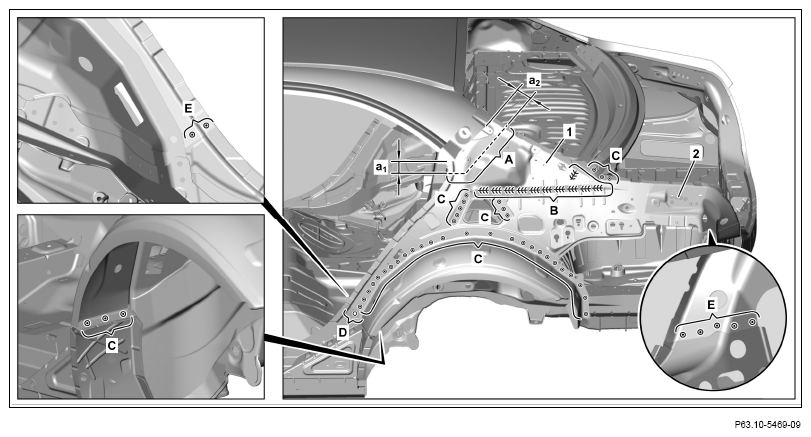

1. Mark separating point on C-pillar side wall (1) and cut (area A).

   Do not cut too deeply.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a₁ = approx. 40 mm a₂ = approx. 60 mm

2. Expose laser seams on C-pillar side wall (1) and cut (area B).
3. Expose and cut out spot welds on C-pillar side wall (1) and reinforcement (2) (areas C and E).

   Cut out spot welds from inside (areas E).

4. Expose spot weld on C-pillar side wall (1) and drill with Ø 6.5 mm (area D).

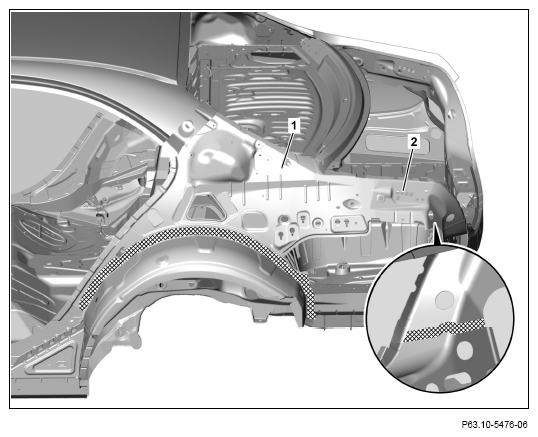

5. Heat C-pillar side wall (1) and reinforcement (2) in crosshatched areas.

   Crosshatched areas are bonded with adhesive.

6. Remove C-pillar side wall (1) and reinforcement (2).

   Courtesy of MERCEDES-BENZ USA

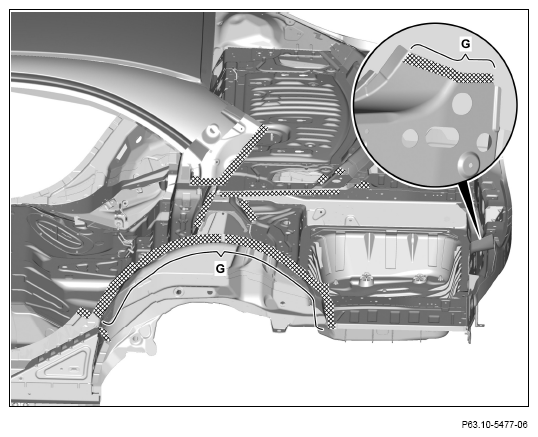

7. Sand down mating surfaces to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

8. Remove grinding dust and drill chips.
9. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas G).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA
