Remove C-Pillar - Ar63.20-P-0500-01LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

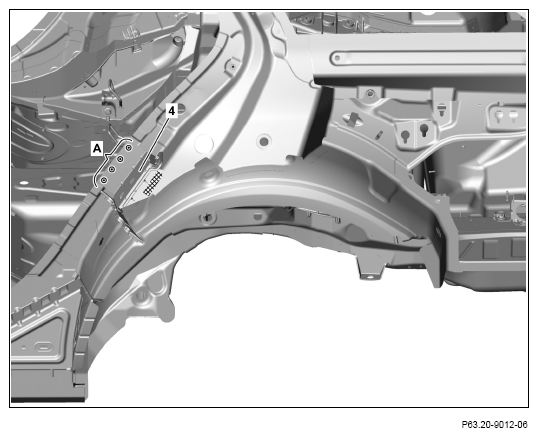

1. Expose spot welds on end plate (4) and cut out (area A).
2. Heat end plate (4) in crosshatched area.

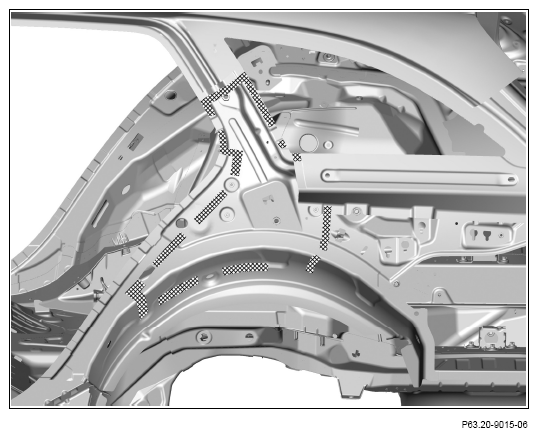

   Cross-hatched area is bonded.

3. Remove end plate (4) together with foam parts.

   Heat foam areas if required.

   Courtesy of MERCEDES-BENZ USA

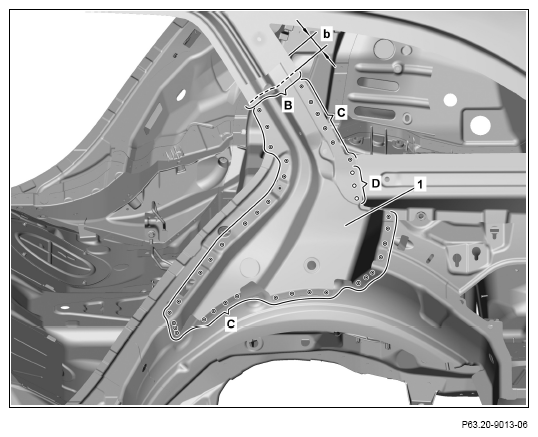

4. Mark separating point on C-pillar (1) and cut (area B).

   Do not cut too deeply. Otherwise the components below can be damaged and weakened.

   Dimensions:

   b = approx. 35 mm

5. Expose spot welds on C-pillar (1) and cut out (areas C).
6. Expose spot welds on C-pillar (1) and drill with Ø 6.5 mm bit (area D).

   Courtesy of MERCEDES-BENZ USA

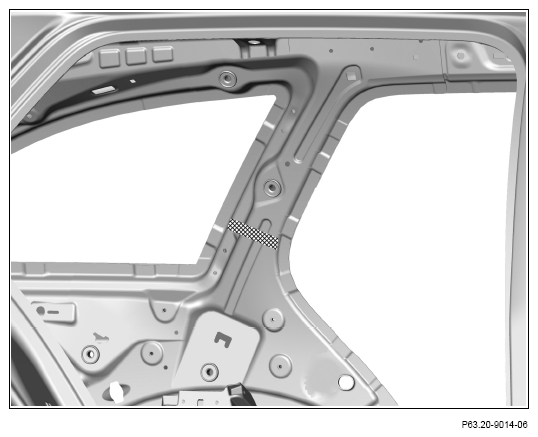

7. Heat body on crosshatched area.

   Cross-hatched area is bonded.

8. Remove C-pillar.

   Courtesy of MERCEDES-BENZ USA

9. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust and drill chips.
11. Coat insides of spot weld flanges with zinc dust paint.
