Prepare Complete Rear Fender For Installation - Ar63.50-P-1401-02LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

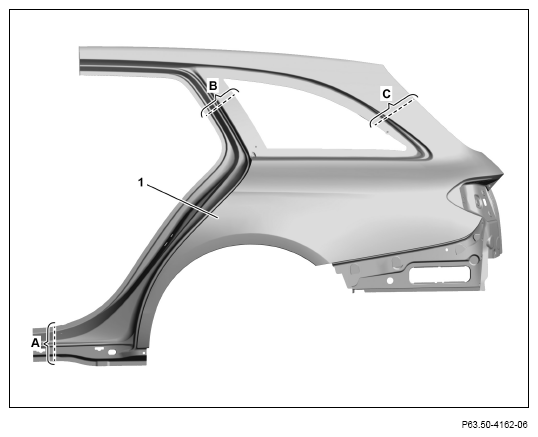

1. Mark separating points on rear fender (1) and cut (areas A, B and C).

   Transfer separation points from vehicle.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

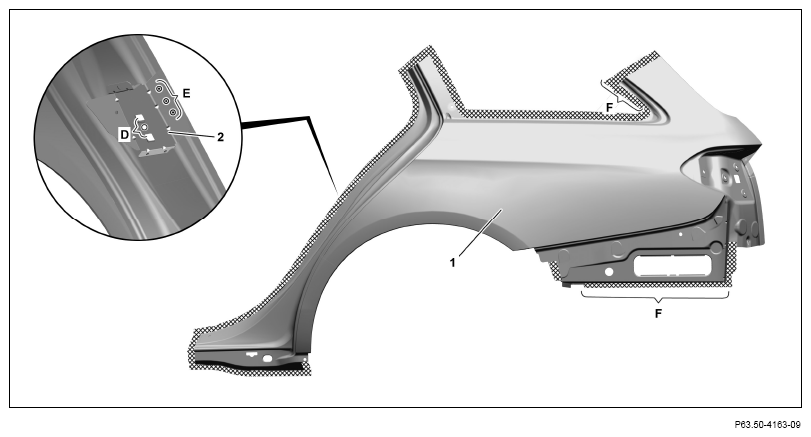

2. Cut out spot welds on lock striker bracket (2) (area C).

   Only if C-pillar is not replaced.

3. Drill out spot welds on lock striker bracket (2) with Ø 6.5 mm (area D).

   Only if C-pillar is not replaced.

4. Remove lock striker bracket (2).

   Only if C-pillar is not replaced.

5. Grind mating surfaces on rear fender (1) down flat.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust (areas F).

   Otherwise adhesion problems may occur.

   Observe preliminary treatment of bonding surface.

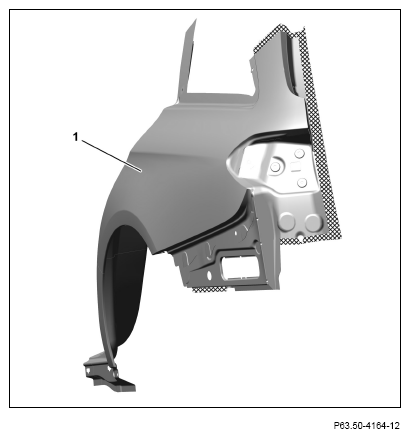

8. Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

9. Remove grinding dust.
10. Coat insides of spot weld flanges with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA
