Install C-Pillar - Ar63.20-P-0500-03LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

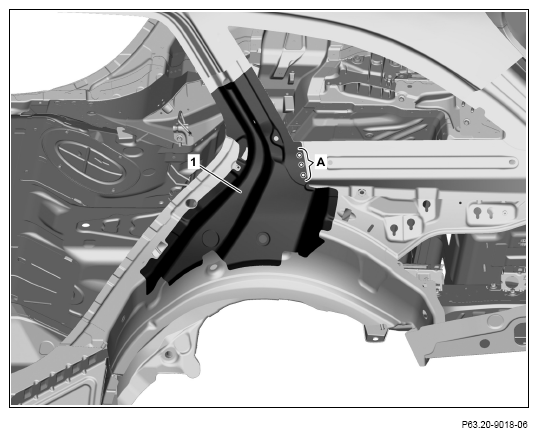

1. Install C-pillar (1), fit and fix in place.
2. Drill rivet holes in C-pillar (1) with Ø 6.7 mm bit (area a).
3. Remove C-pillar (1).
4. Drill rivet holes in C-pillar (1) and deburr on body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

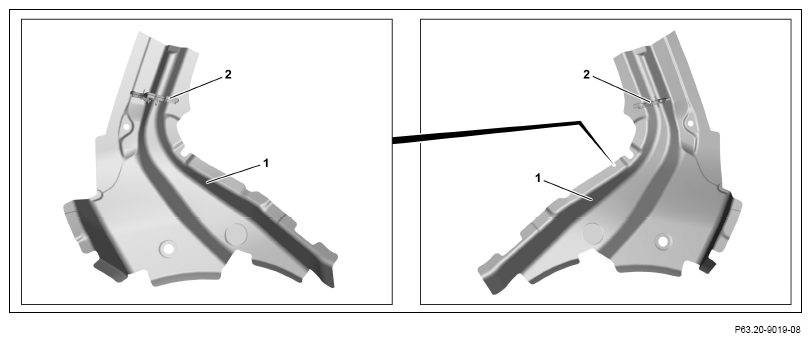

7. Clean contact surfaces on foam parts (2) on C-pillar (1).
8. Apply sealant to C-pillar (1) and insert foam parts (2).

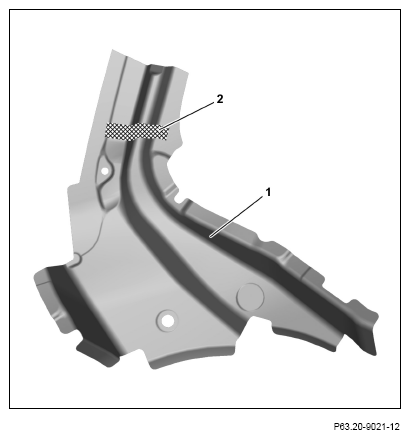

9. Apply sealant to foam part (2) of C-pillar (1) in crosshatched area.

   Courtesy of MERCEDES-BENZ USA

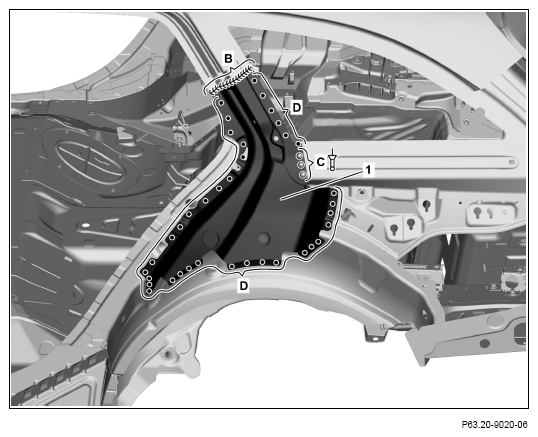

10. Install C-pillar (1) and fix in place.
11. Rivet C-pillar (1) with Ø 6.4x12 rivet (area C).

    Clamping range 1.3 mm to 1.4 mm.

12. C-pillar (1) (areas D).
13. C-pillar (1) (area B).

    Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

14. Grind inert gas weld on C-pillar reinforcement (1) down flat (area B).

    Grind down flat only on beaded areas and contact areas of rear fender (area B).

15. Clean weld joints that are no longer accessible after rear fender is installed, and coat with zinc dust paint.
