Remove Rear Shock-Absorber Strut Tower - Ar64.20-P-1160-01LWE

Model 213.0

Model 213.1

except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

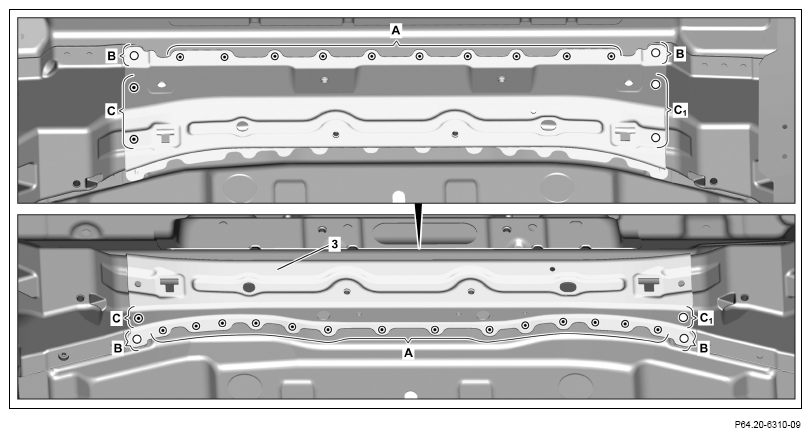

1. Expose spot welds on rear axle crossmember (3) and cut out (areas A).
2. Expose self-piercing riveting on rear axle crossmember (3) and drill with Ø 6 mm bit (areas B).
3. Expose impact spikes on rear axle crossmember (3) and cut out (areas C).
4. Expose impact spikes on rear axle crossmember (3) and drill (areas C₁ )

   Courtesy of MERCEDES-BENZ USA

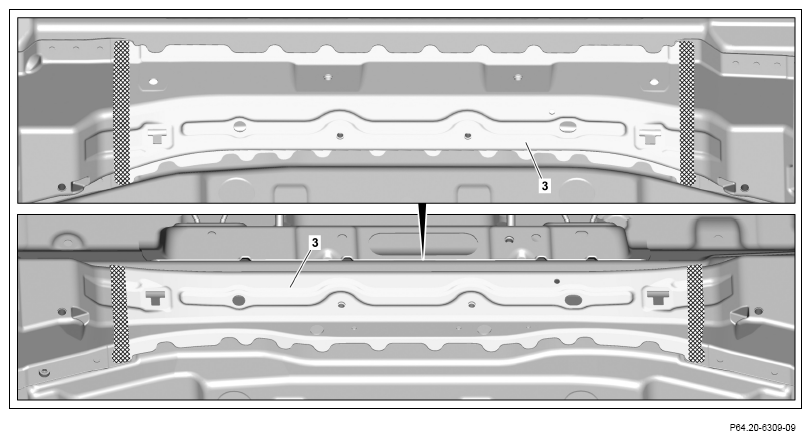

5. Heat rear axle crossmember (3) in crosshatched areas.

   Crosshatched areas are bonded with adhesive.

6. Remove rear axle crossmember (3).

   Courtesy of MERCEDES-BENZ USA

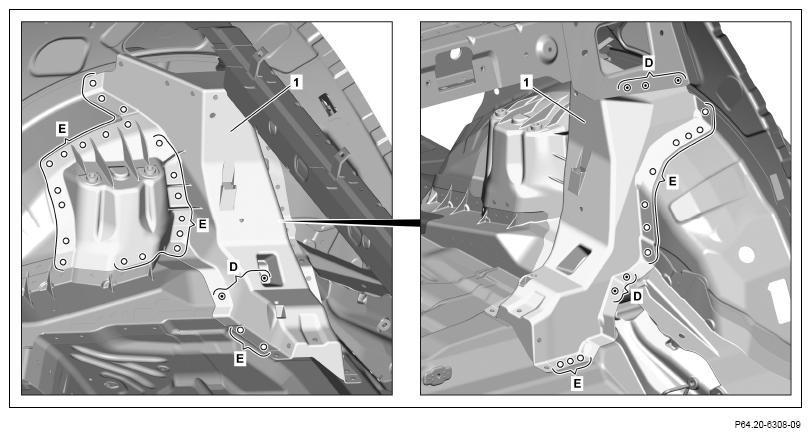

7. Expose impact spikes on damper strut dome (1) and cut out (areas D).
8. Expose self-piercing riveting on damper strut dome (1) and drill with Ø 6 mm bit (areas E).

   Courtesy of MERCEDES-BENZ USA

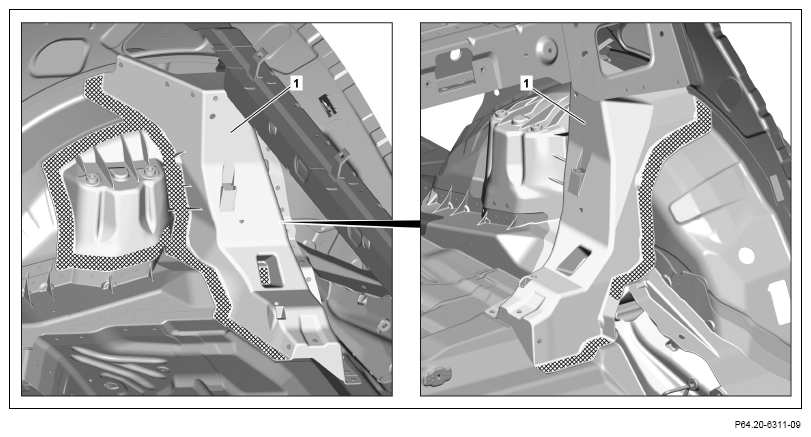

9. Heat damper strut dome (1) in crosshatched areas.
10. Remove damper strut dome (1).

    Crosshatched areas are bonded with adhesive.

    Courtesy of MERCEDES-BENZ USA

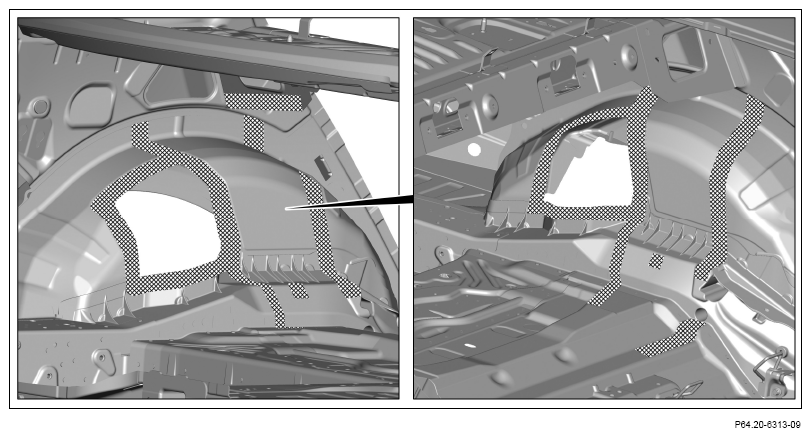

11. Sand down mating surfaces to bare metal in crosshatched areas.
12. Remove grinding dust and drill chips.

    Observe pretreatment of bonding surfaces.
