(Remove/Install Sealing For Side Window On Rear Door - AR72.12-P-0001LWV)

Model 213.1

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove door liner from Rear door		AR72.12-P-1010LW

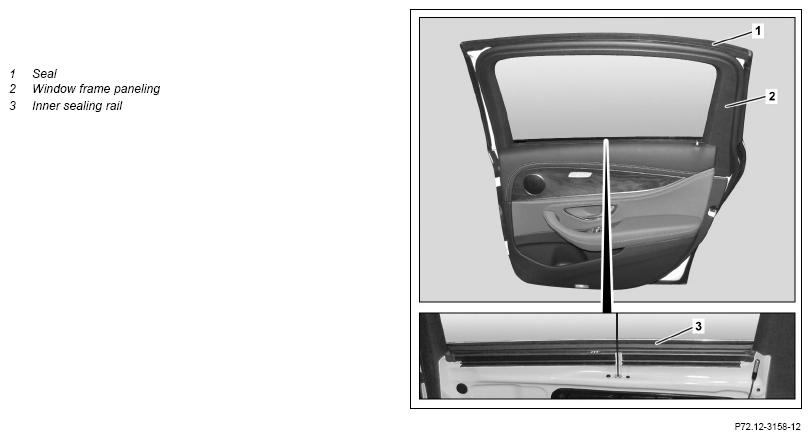

2	Remove window frame paneling (2)	The window frame lining (2) is fastened positively in the window frame.
3	Remove inner sealing rail (3)	Carefully lift inner sealing rail (3) out of bead on inner door panel. Otherwise the inner sealing rail (3) can deform and must be replaced. Moisten assembly area with soapy water.
		Mounting wedge	Fig 1

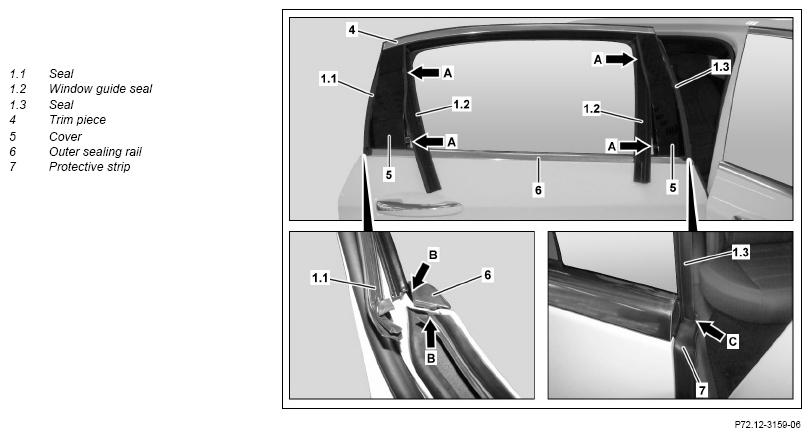

4	Loosen seal (1.1) from cutouts (arrows B) and cover (5)	Moisten assembly area with soapy water.
5	Loosen seal (1.3) from cover (5) and cutout (arrow C) in protective strip (7)	Moisten assembly areas with soapy water.
6	Remove outer sealing rail (6) starting at Rear end with aid of support	Carefully lift outer sealing rail (6) out of bead on inner door panel. Otherwise the outer sealing rail (6) can deform or the paint be damaged. Moisten assembly area with soapy water.
		Mounting wedge	Fig 1
7	Pull window guide seal (1.2) out of covers (5), window guide rails and window channel	Moisten assembly areas with soapy water.
8	Unscrew bolts (arrows A) from covers (5)	Ensure that covers (5) are installed correctly.
9	Remove covers (5)
10	Lift trim piece (4) out of seal (1) and remove	Carefully lift out trim piece (4). Otherwise the trim piece (4) can deform and must be replaced. Moisten assembly area with soapy water.
		Mounting wedge	Fig 1

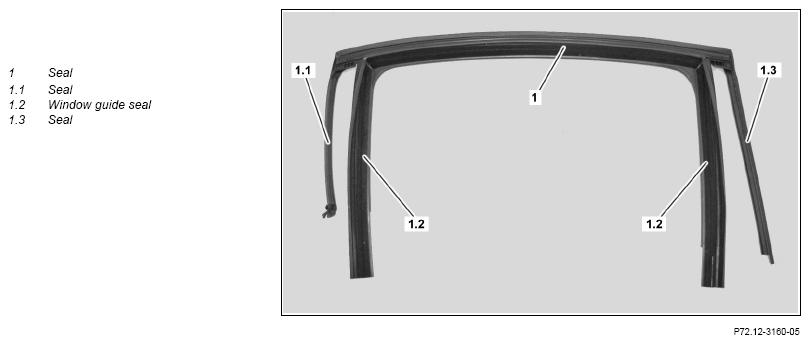

11	Remove seal (1) from window frame.	Moisten assembly area with soapy water.
		Mounting wedge	Fig 1
12	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
