Remove/Install Front Floor Covering On Driver Side - AR68.20-P-2060LWE

Model 213, 238

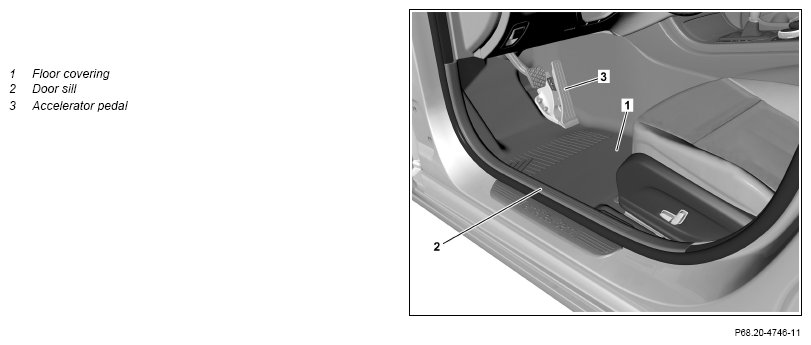

Shown on model 213

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust steering column toward rear and completely upward
2	Detach driver's seat and tilt toward rear		AR91.10-P-1000LW
		Do not disconnect electrical connectors.
3	Remove cover under the dashboard on the driver-side		AR68.10-P-1501LWE
4	Remove accelerator pedal (3)		AR30.12-P-1321LWE
5	Remove door sill molding (2)	Model 238	AR68.30-P-4100CLW
		Model 213	AR68.30-P-4100LW
6	Remove floor covering (1) from front to rear	Mounting wedge	Fig 1
7	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
