Remove/Install Outside Mirror Trim - AR88.70-P-9040LF

Model 205, 213, 217, 222, 238, 253, 293

Courtesy of MERCEDES-BENZ USA

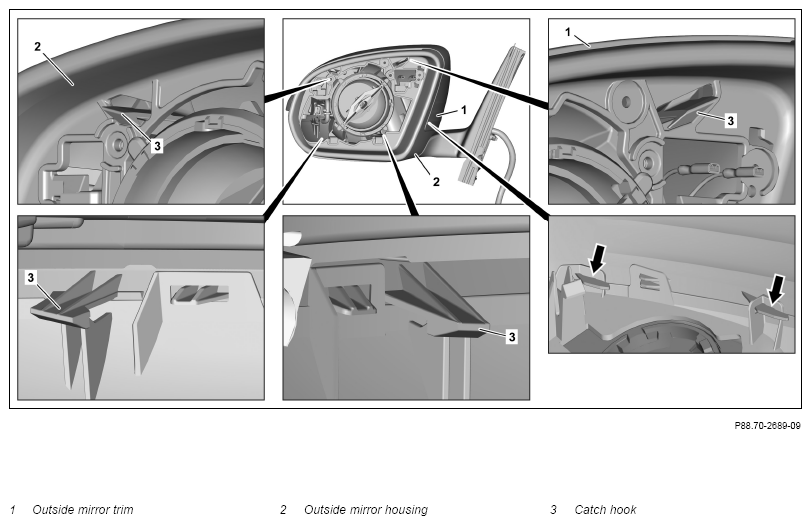

Shown on left outside mirror, model 222

Courtesy of MERCEDES-BENZ USA

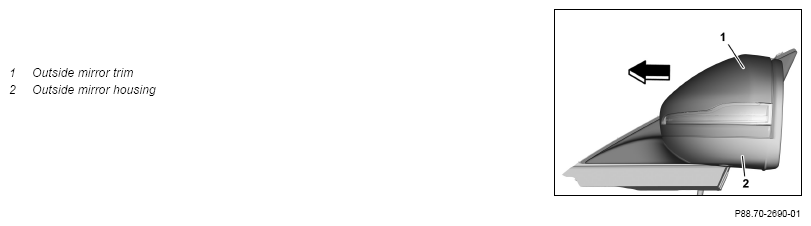

Shown on left outside mirror, model 222

	Remove/install
1	Remove mirror lens.		AR88.70-P-9020LF
2	Release catch hooks (3) and remove outside mirror trim (1) toward the front from the outside mirror housing (2).	: Move guides (arrows) on outside mirror paneling (1) at inside into outside mirror housing (2).
3	Install in the reverse order
