Partially Prepare Side Wall Reinforcement For Installation - Ar63.20-P-0861-03LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

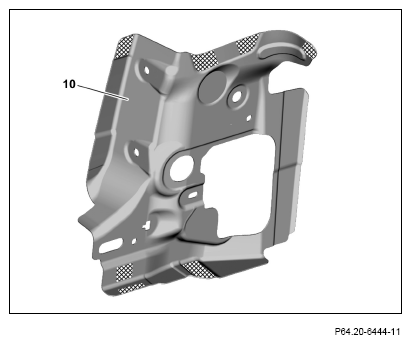

1. Grind mating surfaces on side wall reinforcement (10) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
