Partially Install Side Wall Reinforcement - Ar63.20-P-0861-04LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

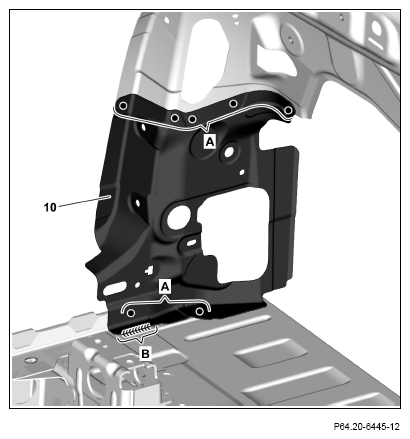

1. Install side wall reinforcement (10), fit and fix in place.
2. Side wall reinforcement (10) (areas A).
3. Side wall reinforcement (10) (area B).

   Perform inert gas welding at intervals and allow to cool down in between. This reduces heat distortion.

   Courtesy of MERCEDES-BENZ USA
