Install Longitudinal Member Outer Shell On Entrance - Ar63.30-P-1102-03LWE
Model 213
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.
- Install longitudinal member outer shell (1), fit and fix in place.

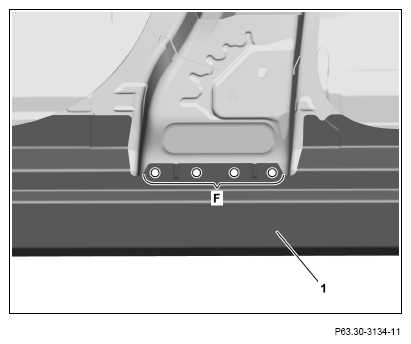

- Drill rivet holes on longitudinal member outer shell (1) with Ø 6.7 mm (area F).

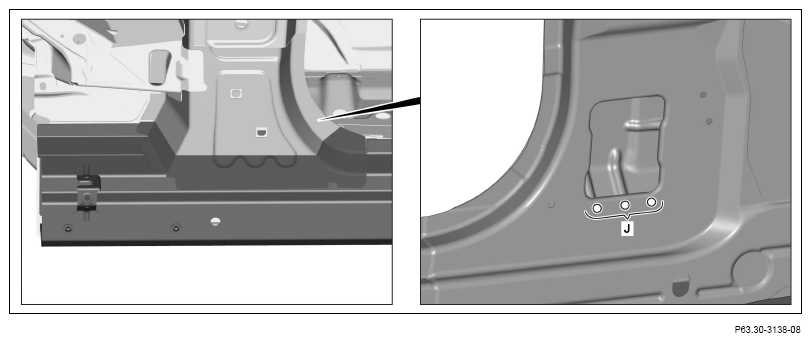

- Drill rivet holes in longitudinal member outer shell from inside through present holes in body with Ø 6.7 mm bit (area J).
- Remove longitudinal member outer shell.
- Deburr rivet holes on longitudinal member outer shell and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints not bonded with zinc dust paint.

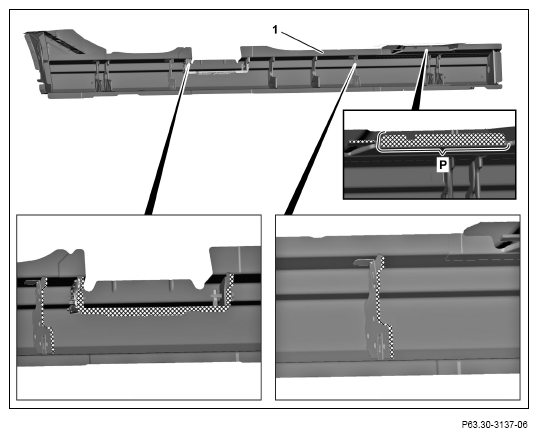

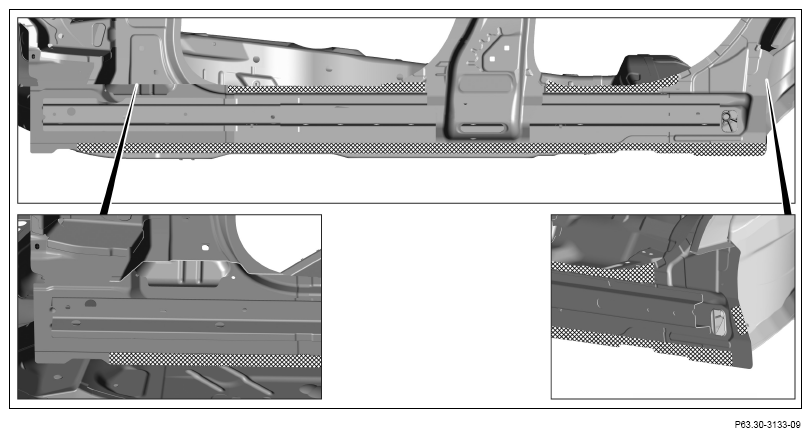

- Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Insert new foam part in area of B-pillar.
- Apply sealant to foam parts on longitudinal member outer shell (1) in crosshatched areas.
- Apply 2-component adhesive to longitudinal member outer shell (1) in crosshatched areas (area P).
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install longitudinal member outer shell (1), fit and fix in place.

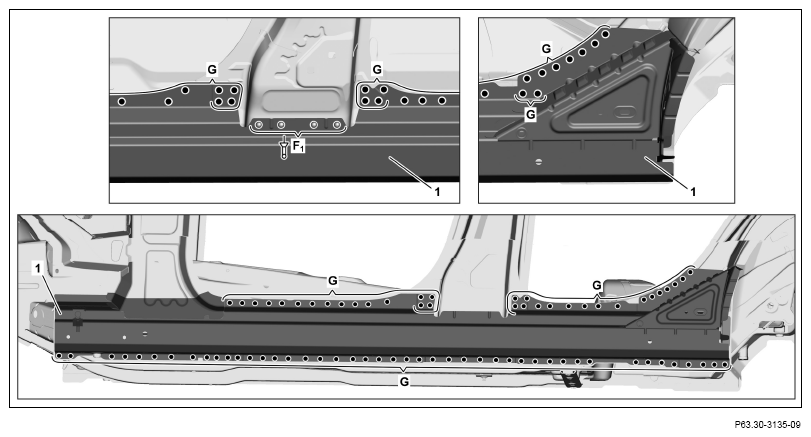

- Rivet longitudinal member outer shell (1) with Ø 6.5x12.5 rivets (area F1
).
Clamping range 3.9 mm to 4.7 mm.
- Longitudinal member outer shell (1)
(areas G).

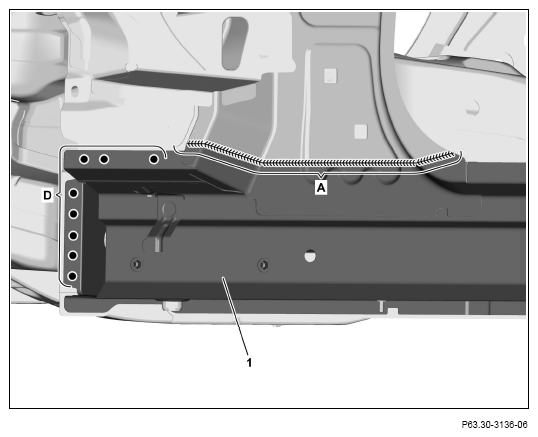

- Longitudinal member outer shell (1)
(area D).
- Longitudinal member outer shell (1)
(area A).

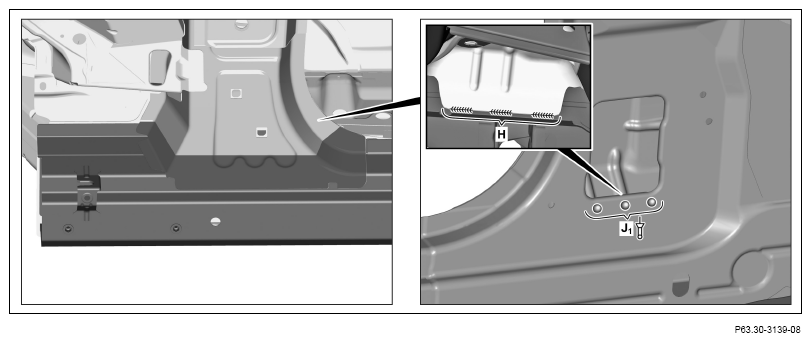

- Longitudinal member outer shell
(area H).
- Rivet longitudinal member outer shell (1) with Ø 6.5x12.5 rivets (area J).
Clamping range 2.7 mm.
