Remove/Install Rear Door Lock - AR72.12-P-2511LWE
Model 213
Shown on left Rear door lock (A85/3)
Shown on left Rear door lock (A853) with Code 883 (Power closing function)
| Remove/install | |||
| 1 | Remove door module (8) | AR72.12-P-0103LW | |

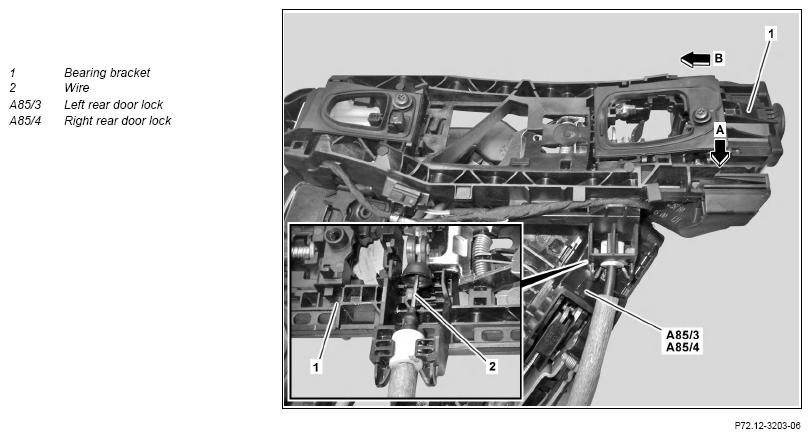

| 2 | Release retaining tab (arrow A) and push down bearing bracket (1) of Rear door lock (A853, A85/4) (arrow B) | ||
| 3 | Unhook wire (2) at bearing bracket (1) | ||
| 4 | Unhook wire (5) at Rear door lock (A853, A85/4) | ||

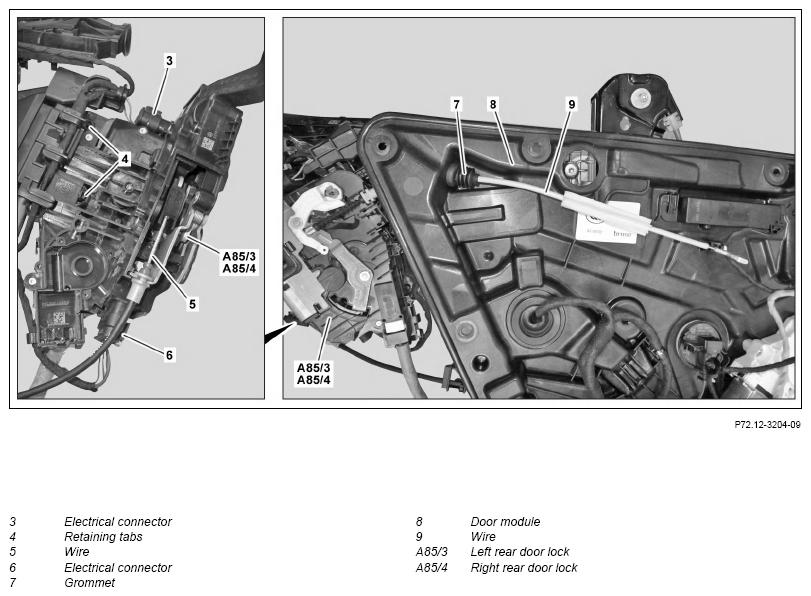

| 5 | Disconnect electrical connectors (3, 6) | Model 213 with Code 883 (Power closing) |
|
| 6 | Press grommet (7) out of door module (8) | ||
| 7 | Release retaining tabs (4) | ||
| 8 | Remove Rear door lock (A853, A85/4) and pull wire (9) out of door module (8) | ||
| 9 | Install in the reverse order |
