Remove/Install Front Door Inner Actuation - AR72.10-P-1400LWE

Model 213

MODIFICATION NOTES

15.01.2020

Document revised completely.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

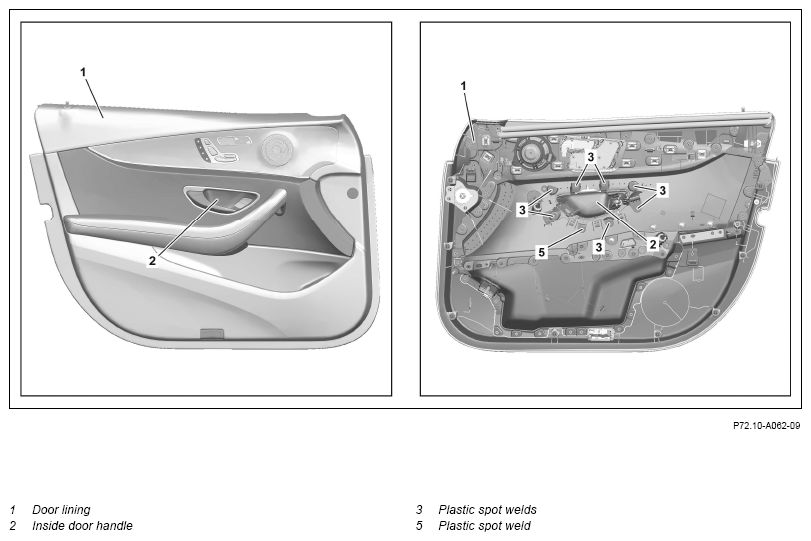

Shown on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.10-P-1000LW
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
2.1	Drill out plastic spot welds (3, 5) and remove inside door handle (2).	If inside door handle (2) is attached with plastic spot welds (3, 5).
			AR72.00-P-0001-01LW

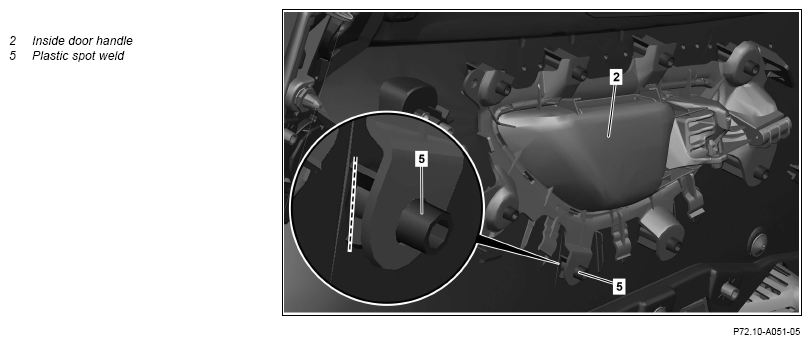

		: Shorten welded spacer of drilled out plastic spot weld (5) up to contact surface. Replace drilled out plastic spot welds (3) by screws. The drilled out plastic spot weld (5) remains free and is not replaced by a screw. Attach inside door handle (2) using screws from the repair kit.
2.2	Remove screws and remove inside door handle (2).	If the inside door handle (2) is attached using screws.
3	Install in the reverse order.
