Disassemble/Assemble Front Door Liner - AR72.10-P-1030LW
Model 213
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Disassemble/assemble | |||
| 1 | Remove door lining from the Front door. | AR72.10-P-1000LW | |
| 2 | Remove the acoustic non-woven material. | ||
| 3 | Remove driver-side power window and outside mirror adjustment switch group (S20). | AR72.29-P-0100LWE | |
| 4 | Remove left Front seat adjustment switch group (S22). | Model 213 with Code 221 (Electrically adjustable left driver seat) with Code 222 (Electrically adjustable right driver seat) Model 213 with Code 275 (Memory Package (driver's seat, steering column and mirror)) | |
| AR91.29-P-2523LW | |||
| 5 | Release and disconnect electrical connector (1). | Model 213 with Code 401 (Climatised Front seats) Model 213 with Code 873 (Left and right driver's seat heating) Model 213 with Code 902 (Seat heater Plus for driver and Front passenger) | |
| 6 | Release and remove the left Front seat heating switch (S51/1s2) (arrows A). | Model 213 with Code 401 (Climatised Front seats) Model 213 with Code 873 (Left and right driver's seat heating) Model 213 with Code 902 (Seat heater Plus for driver and Front passenger) | |
| 7 | Release and disconnect electrical connector (2). | ||
| 8 | Unclip driver trunk lid/liftgate control button (S15/3) on the Rear and remove upward. | Model 213 with Code 881 (Remote boot-lid closing) |
|
| 9 | Release and disconnect electrical connector (3). | ||
| 10.1 | Unclip and remove left Front door mid-range speaker (H4/1). | Model 213 except Code 811 (High-End sound system) | |

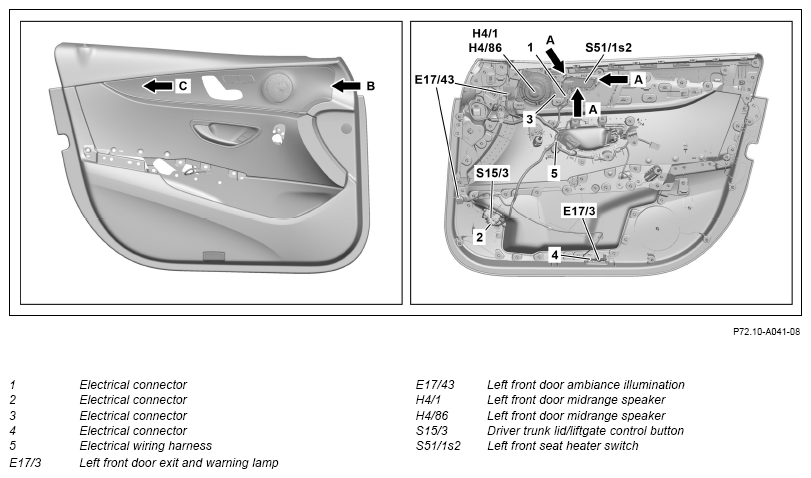

| Fig 1 | |||
| 10.2 | Unclip and remove left Front door mid-range speaker (H4/86). | Model 213 with Code 811 (High-End sound system) |
|
| Fig 1 | |||
| 11 | Release and disconnect electrical connector (4). | ||
| 12 | Unclip and remove left Front door exit and warning lamp (E17/3). | ||
| 13 | Unclip left Front door ambient lighting (E17/43) and remove from the light-guiding elements. | Model 213 with Code 877 (Ambient lighting) |
|
| 14 | Remove Front door inside door handle. | AR72.10-P-1400LWE | |
| 15 | Remove Front door armrest. | AR72.10-P-1035LWE | |
| 16 | Beginning at the Front edge (arrow B), unclip the trim element using the long wedge and remove toward the Rear (arrow C). | Fig 2 | |
| 17 | Remove speaker cover. | AR72.10-P-1032LW | |
| 18 | Unclip and remove electrical wiring harness (5). | Fig 3 | |
| 19 | Assemble in the reverse order. |
