Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97DDA
Model 213 as of model year 2021
with code 896 (Vehicle access and authorization via smartphone)
with code 897 (Front wireless telephone charging)
with code 898 (Wireless telephone charging in rear passenger compartment)
with code 899 (Front wireless telephone charging and antenna) Control units A28/15, N123/8 and N123/10

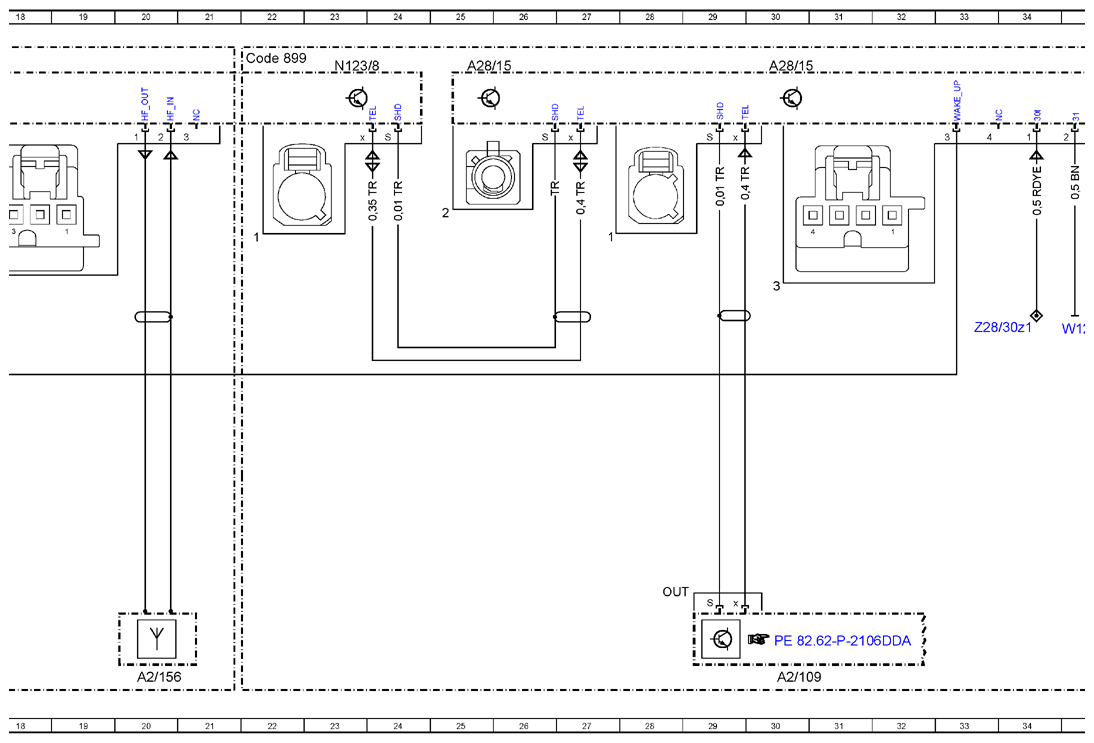

| Code: | Designation: | Position: |
|---|---|---|

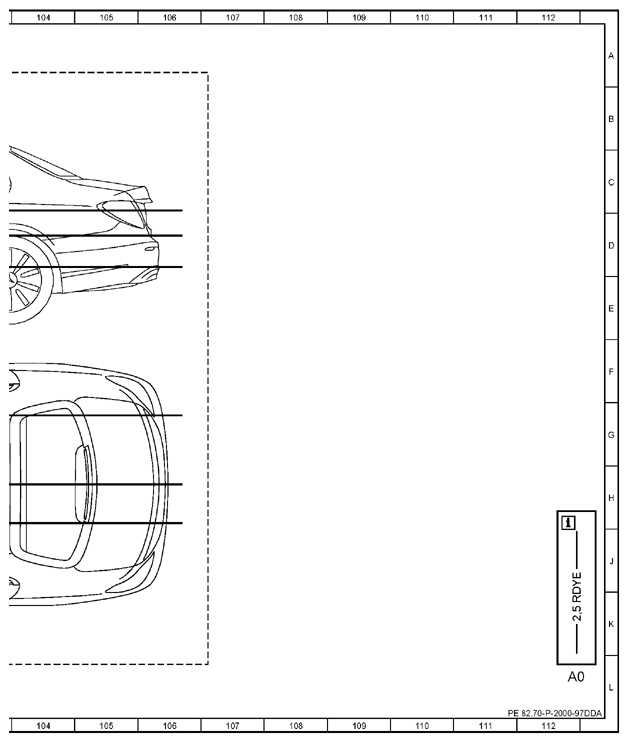

| A0 | Use of wiring diagrams | 112L |
| A2/109 | Telephone antenna splitter | 30L |
| A2/109 | Telephone antenna splitter | 69L |
| A2/156 | Near Field Communication antenna | 20L |
| A26/17 | Head unit | 14L |
| A26/17 | Head unit | 64L |

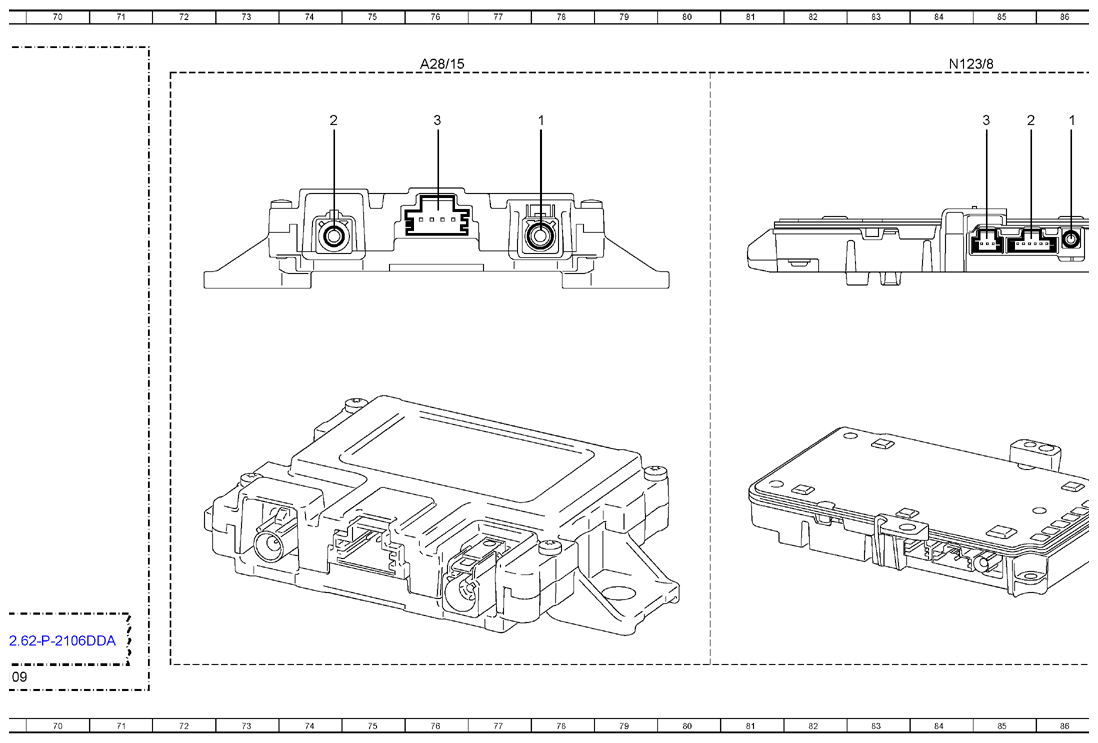

| A28/15 | Cellular telephone system antenna amplifier/compensator | 25A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 30A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 76A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 101A |
| CAN A | Telematics CAN | 15K |
| CAN A | Telematics CAN | 48K |
| CAN A | Telematics CAN | 64K |
| Code 380 | Car telephony package | 52A |
| Code 897 | Wireless mobile phone charging | 9D |
| Code 897 | Wireless mobile phone charging | 1A |
| Code 898 | Wireless charging in rear passenger compartment | 35A |
| Code 899 | Wireless phone charging at front and antenna | 7D |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 22A |
| Code L | LEFT-HAND DRIVE | 58E |
| Code L | LEFT-HAND DRIVE | 46E |
| Code R | RIGHT-HAND DRIVE | 58F |
| Code R | RIGHT-HAND DRIVE | 48E |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3 | Passenger-side A-pillar fuse box | 58L |
| F1/3MF1 | Multiple fuse 1 | 8K |
| F1/3MF2 | Multiple fuse 2 | 57K |
| K40/5 | Rear fuse and relay module | 43L |
| K40/5f412 | Fuse 412 | 42L |
| N10/6 | Front SAM control unit | 39L |

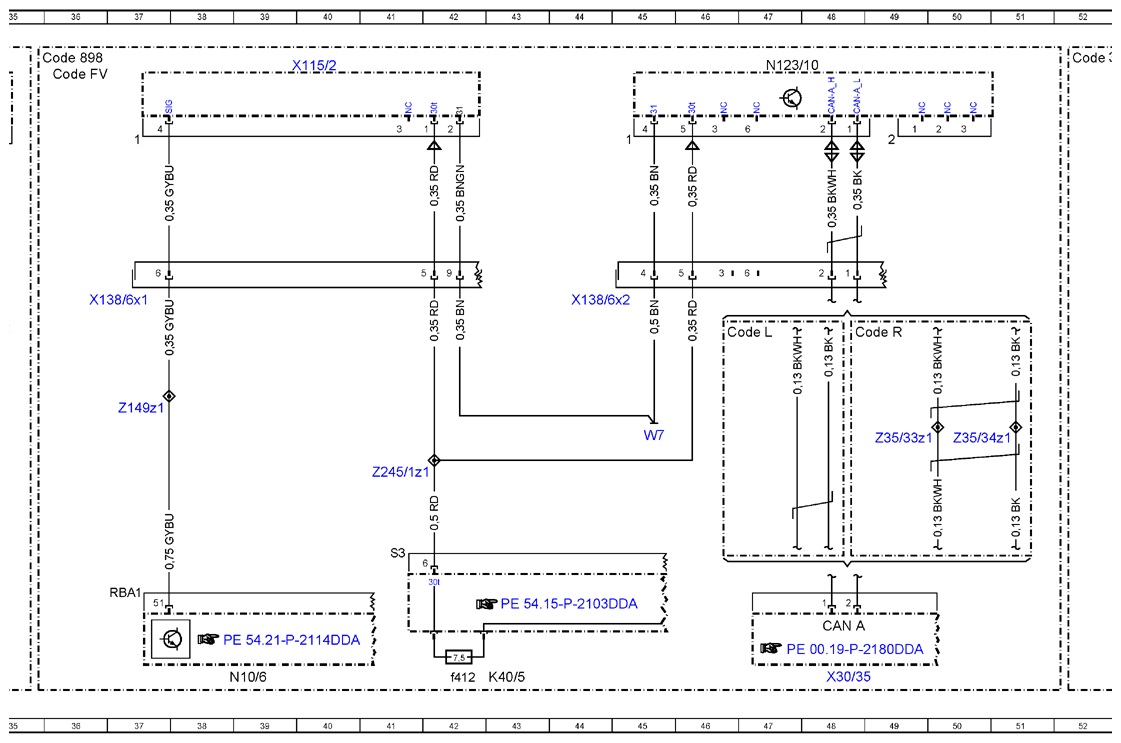

| N123/10 | Rear passenger compartment mobile phone cradle control unit | 47A |

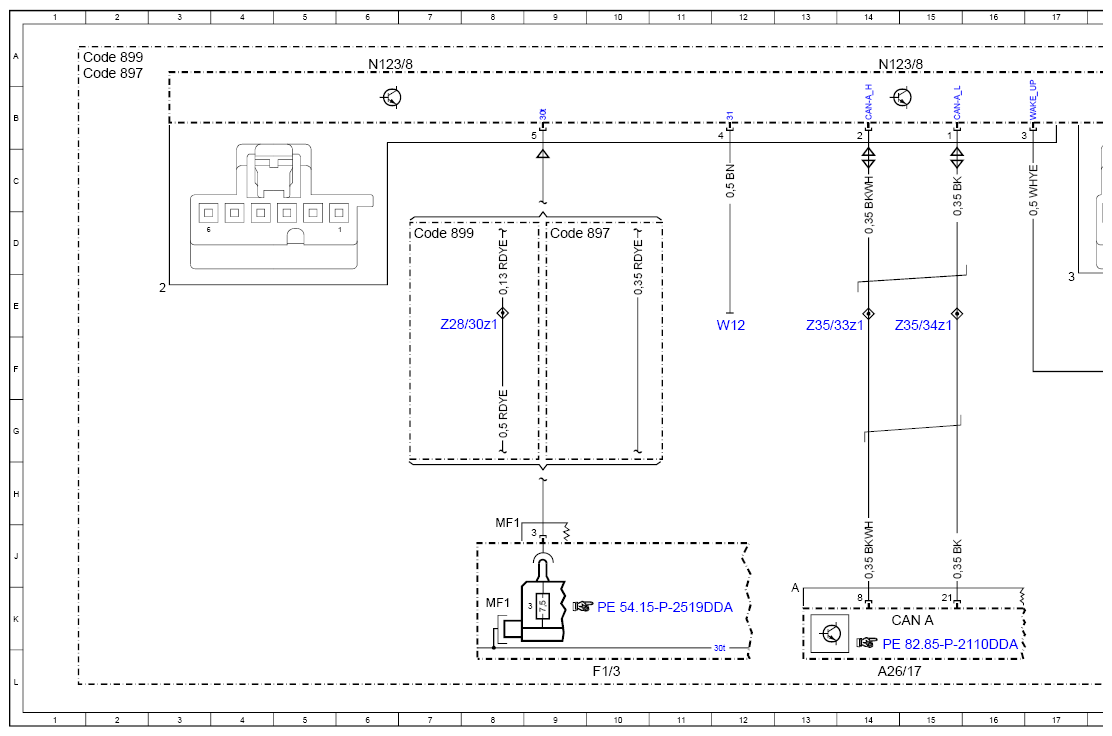

| N123/8 | Front mobile phone cradle control unit | 6A |
| N123/8 | Front mobile phone cradle control unit | 14A |
| N123/8 | Front mobile phone cradle control unit | 23A |
| N123/8 | Front mobile phone cradle control unit | 84A |
| N123/8 | Front mobile phone cradle control unit | 100A |

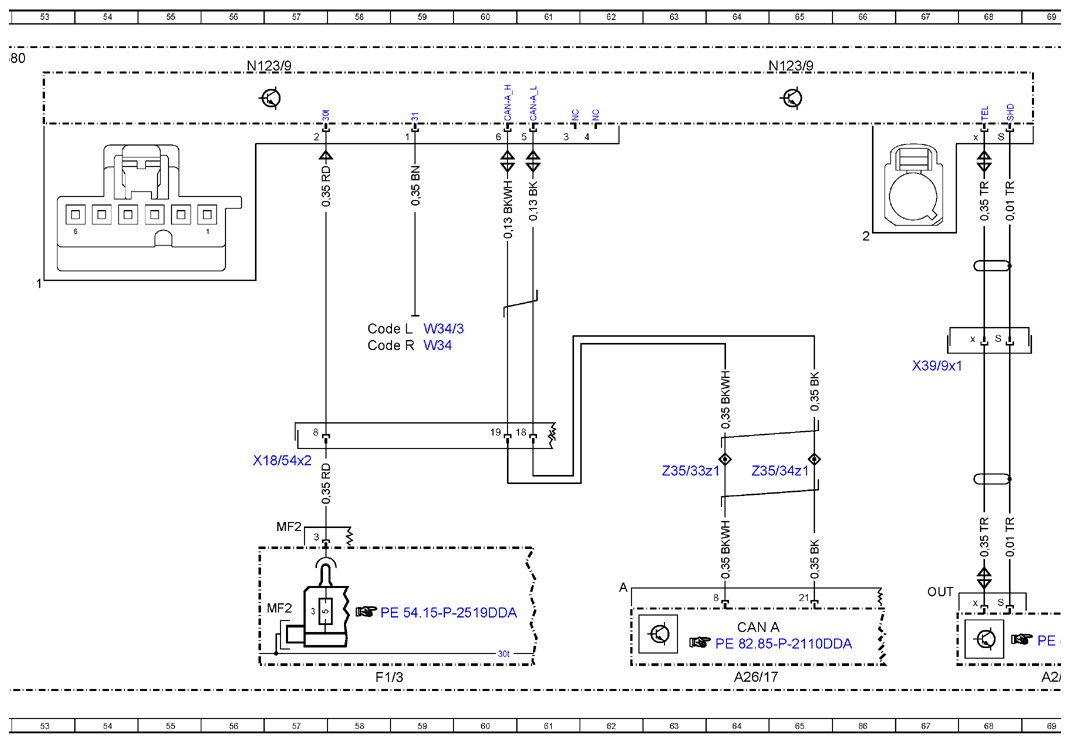

| N123/9 | Telephone control unit | 56A |
| N123/9 | Telephone control unit | 65A |
| N123/9 | Telephone control unit | 91A |
| N123/9 | Telephone control unit | 99A |
| W12 | Left center console ground point | 12E |
| W12 | Left center console ground point | 34E |
| W34 | Left footwell ground point | 59F |
| W34/3 | Right footwell ground point | 59E |
| W7 | Right wheelhouse trunk ground point | 45G |
| X115/2 | Rear passenger compartment USB connector | 40A |
| X138/6x1 | Rear center console electrical connector | 37E |
| X138/6x2 | Rear center console electrical connector | 44E |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 57G |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 48L |
| X39/9x1 | Passenger-side cockpit/interior wiring harness electrical connector | 67F |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 37G |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 41H |
| Z28/30z1 | Telephone power supply connector sleeve | 8E |
| Z28/30z1 | Telephone power supply connector sleeve | 34E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 13E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 63H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 49G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 15E |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 65H |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 50G |
