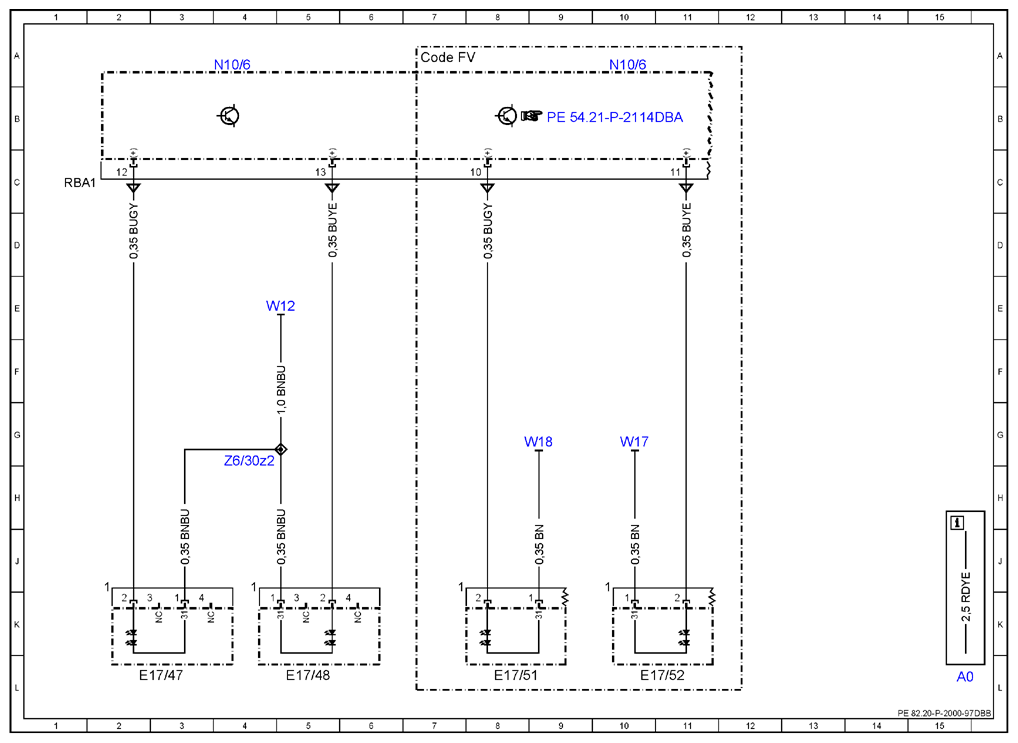

Wiring Diagram Interior Illumination - PE82.20-P-2000-97DBB
Model 213 up to model year 2021 with code U25 (Illuminated door sill panels with "Mercedes-Benz" lettering) Door sill E17/47, E17/48
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 15L |
| Code FV | LONG SEDAN | 7A |
| E17/47 | Left front illuminated door sill molding | 3L |
| E17/48 | Right front illuminated door sill molding | 5L |
| E17/51 | Left rear illuminated door sill molding | 8L |
| E17/52 | Right rear illuminated door sill molding | 10L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 10A |
| W12 | Left center console ground point | 4E |
| W17 | Right rear seat ground point | 10G |
| W18 | Left front seat crossmember ground point | 9G |
| Z6/30z2 | Circuit 31 connector sleeve | 4G |
