Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DBI
Model 213.0/1 up to model year 2021
with code 631 (Static LED headlamps, left-hand traffic)
with code 632 (Headlamps, LED, static, right-side traffic)
except code 494 (US version) Lamp unit E3, E4
Model 213.0/1 up to model year 2021
with code P35 (Light Package)
except code 494 (US version) Lamp unit E3, E4
| Code: | Designation: | Position: |
|---|---|---|

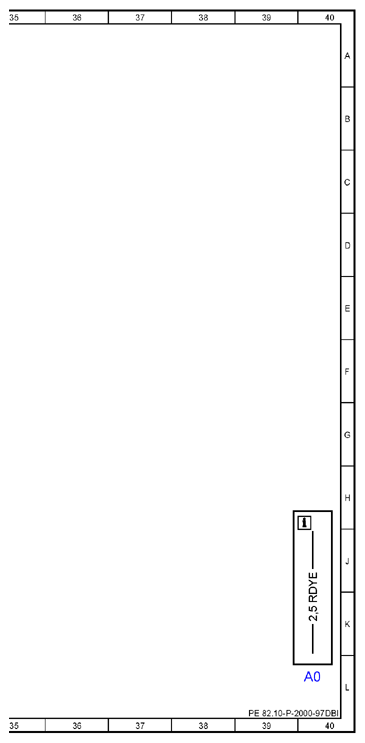

| A0 | Use of wiring diagrams | 40L |
| Code 045 | LED rear lamp | - |
| Code 494 | USA version | - |
| Code L | LEFT-HAND DRIVE | 13A |
| Code L | LEFT-HAND DRIVE | 17F |
| Code R | RIGHT-HAND DRIVE | 15F |
| Code R | RIGHT-HAND DRIVE | 31A |

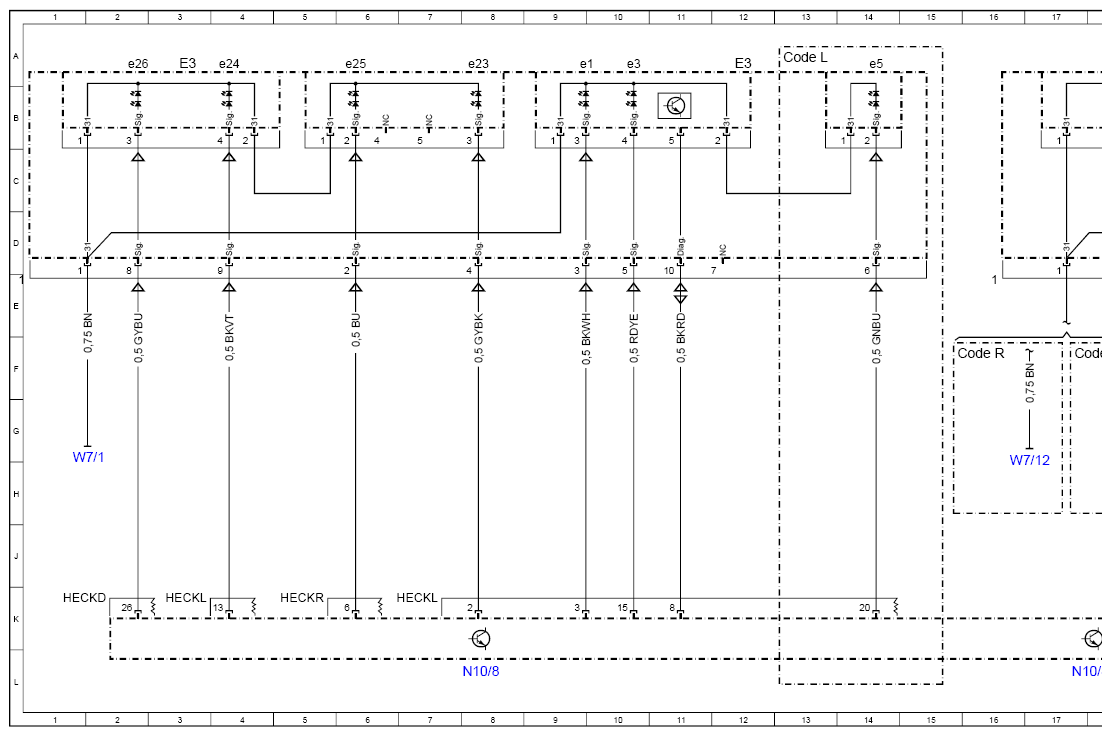

| E3 | Left rear lamp unit | 3A |
| E3 | Left rear lamp unit | 12A |
| E3e1 | Left rear turn signal lamp | 9A |
| E3e23 | Upper left brake light | 8A |
| E3e24 | Lower left brake light | 4A |
| E3e25 | Upper left taillight | 6A |
| E3e26 | Lower left taillight | 2A |
| E3e3 | Left backup lamp | 10A |
| E3e5 | Left rear fog lamp | 14A |

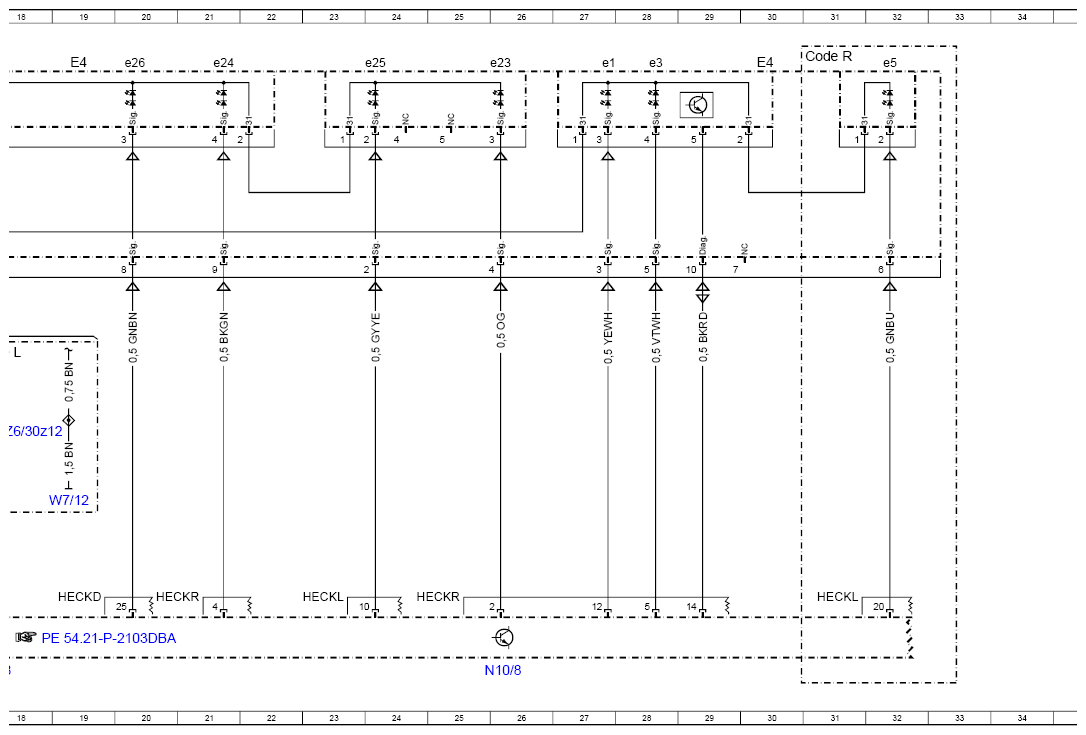

| E4 | Right rear lamp unit | 19A |
| E4 | Right rear lamp unit | 30A |
| E4e1 | Right rear turn signal lamp | 27A |
| E4e23 | Upper right brake light | 26A |
| E4e24 | Lower right brake light | 21A |
| E4e25 | Upper right taillight | 24A |
| E4e26 | Lower right taillight | 20A |
| E4e3 | Right backup lamp | 28A |
| E4e5 | Right rear fog lamp | 32A |
| N10/8 | Rear SAM control unit | 8L |
| N10/8 | Rear SAM control unit | 26L |
| N10/8 | Rear SAM control unit | 17L |
| W7/1 | Right taillamp trunk ground point | 1H |
| W7/12 | Right floor AdBlue® ground point | 19H |
| W7/12 | Right floor AdBlue® ground point | 16H |
| Z6/30z12 | Circuit 31 connector sleeve | 18G |
