Retrofit CD Drive - AZ82.64-P-0002LWE

Model 213.0 (except 213.088/089), 213.2 (except 213.288/289)

as of model year 2018

with code 531 (COMMAND APS)

except code 320 (Single CD drive preinstallation)

except code 334 (Two-way radio retainer in glove compartment)

except code 498 (Japanese version)

except code 830 (China version)

Model 213.088/089/288/289

as of model year 2018

with code 531 (COMMAND APS)

except code 320 (Single CD drive preinstallation)

except code 334 (Two-way radio retainer in glove compartment)

except code 460 (Canada version)

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
1	Remove fragrance generator	Model 213.0/2 with code P21 (Air quality package)
			AR83.40-P-0200LW
2	Remove glove box
			AR68.10-P-1402LWE
3	Remove head unit
			AR82.85-P-1101LWE
4	Detach HERMES control unit from holder and place to one side with attached lines
			AR82.95-P-0019LWE
5	Remove COMMAND display
			AR82.85-P-7429LWE
6	Remove bottom paneling for dashboard on driver side
			AR68.10-P-1501LWE
7	Detach driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 213.0/2 up to model year 2021	GF54.15-P-1256-49FG
	Wiring diagram for driver-side fuse and relay module	Model 213.0/2 as of model year 2021	PE54.15-P-2104DDA
		so that electrical fuse 204 (K40/6f204) is accessible.	AR54.15-P-0003LWE
8	Remove entrance plate on driver side
			AR68.30-P-4100LW
	Install
9	Produce a drilling template for the CD drive	Model 213.0/2## 1#	AZ82.64-P-0002-04LWE
		Model 213.0/2## 2#	AZ82.64-P-0002-04LWR
10	Fabricate adhesive film cutting template for CD drive (1)		AZ82.64-P-0002-05LWE
11	Use cutting template to cut adhesive film to size
12	Prepare glove box for installation of CD drive (1)	Model 213.0/2## 1#	AZ82.64-P-0002-08LWE
		Model 213.0/2## 2#	AZ82.64-P-0002-08LWR
13	Prepare holder for CD drive (1) for installation		AZ82.64-P-0002-06LWE
14	Retrofit wiring harness for CD drive (1)		AZ82.64-P-0002-01LWE
		Left footwell ground point	*BA00.19-P-1024-02A

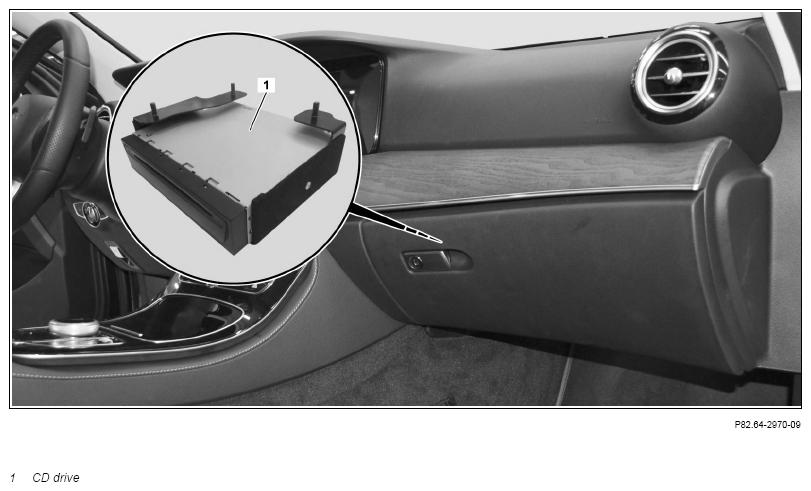

15	Retrofit CD drive (1) in glove box		AZ82.64-P-0002-03LWE
16	Install glove box with CD drive (1)
		Pay attention to installation of lines.	AR68.10-P-1402LWE
17	Insert a 5 A fuse into the f204 slot of the driver-side fuse and relay module (K40/6)
	Assignment of driver-side fuse and relay module	Model 213.0/2 up to model year 2021	GF54.15-P-1256-49FG
	Wiring diagram for driver-side fuse and relay module	Model 213.0/2 as of model year 2021	PE54.15-P-2104DDA
18	Install remaining parts
	Update Vehicle Documentation (VeDoc)
19	Enter special equipment in online vehicle data card	Code 320 (Single CD drive pre-installation)
20	Attach "CD drive retrofitted as per AN82.64-P-0002LWE" note under field organization texts	On design group 82 and design group 54.
21	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
22	Carry out variant coding using software calibration number (SCN)	Head unit
23	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
24	Perform function test	See Owner's Manual.

Number	Designation			Model 213
BA00.19-P-1024-02A	Left footwell ground point	W34	Nm	10

Part no.	Designation	Quantity
KG 98 (see EPC)	CD drive scope of delivery	1
