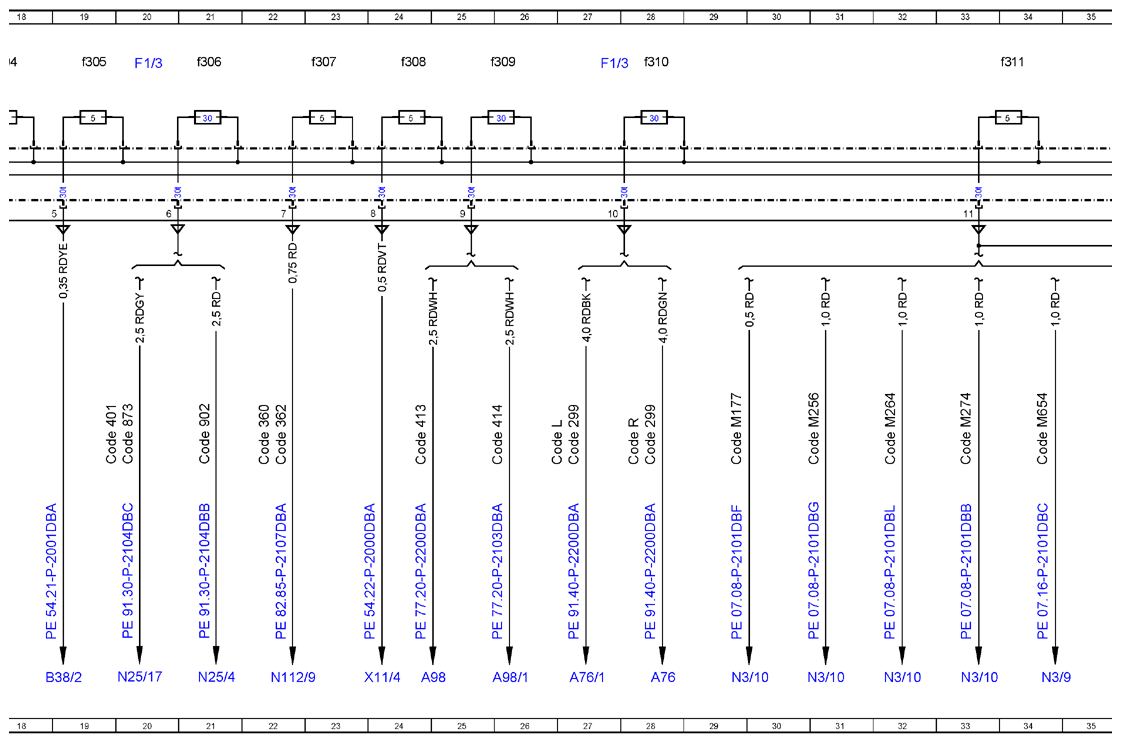

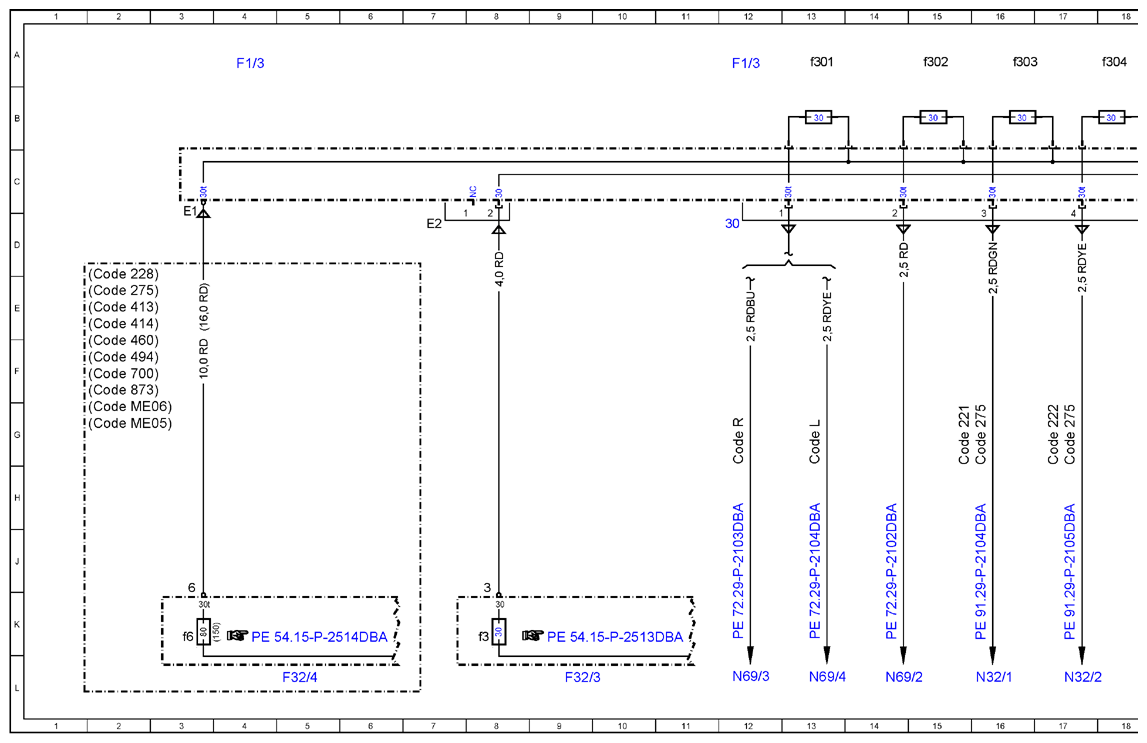

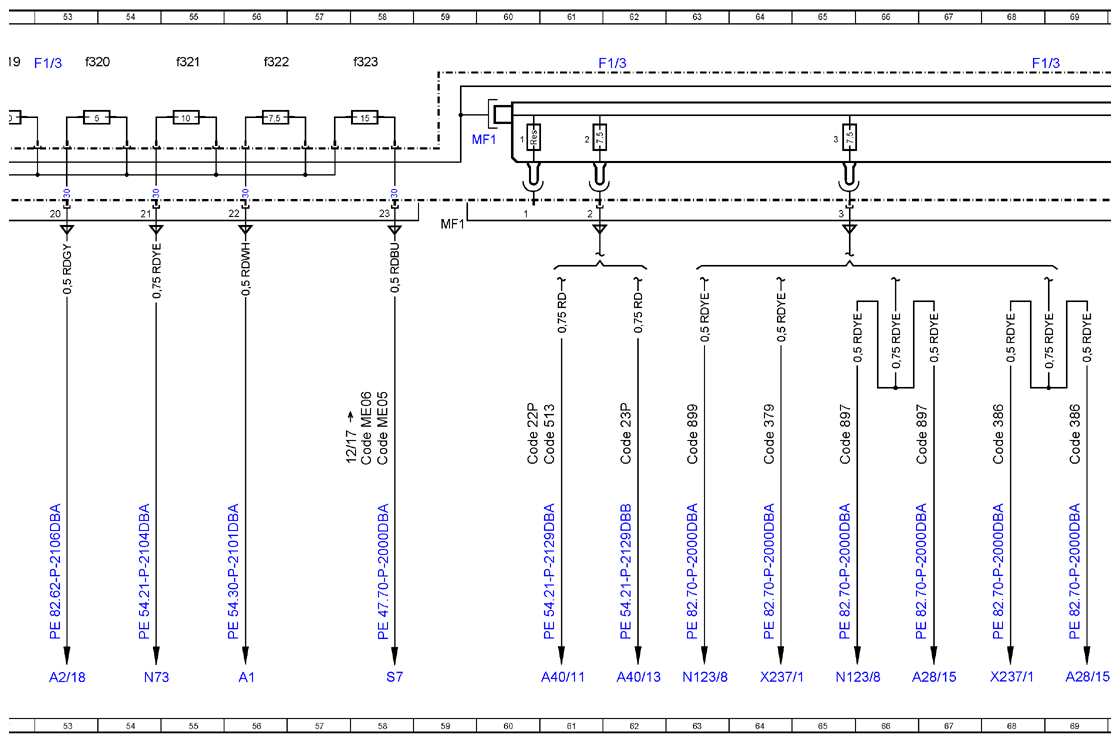

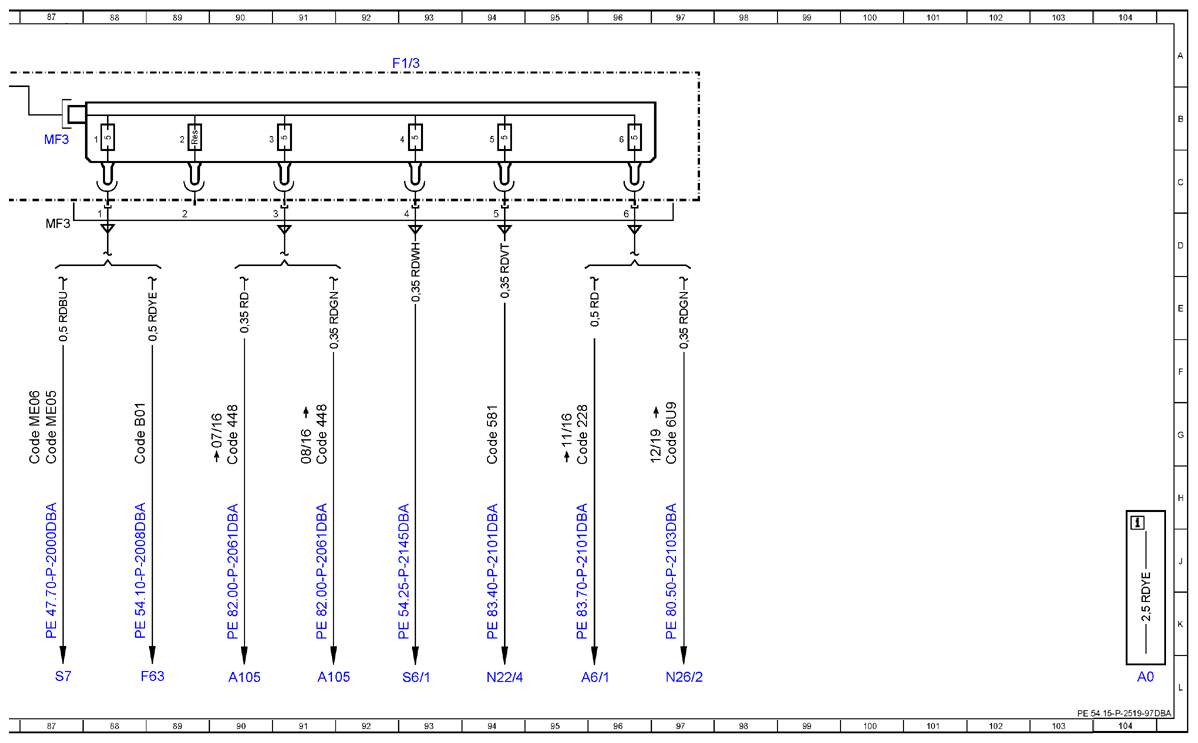

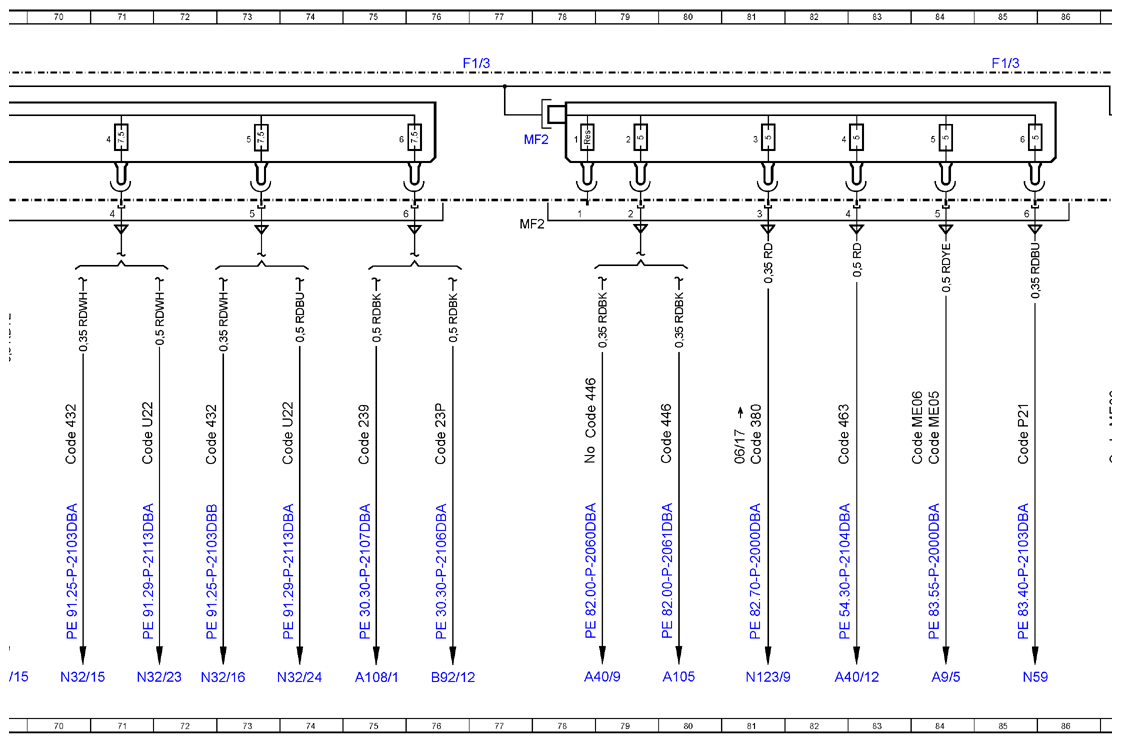

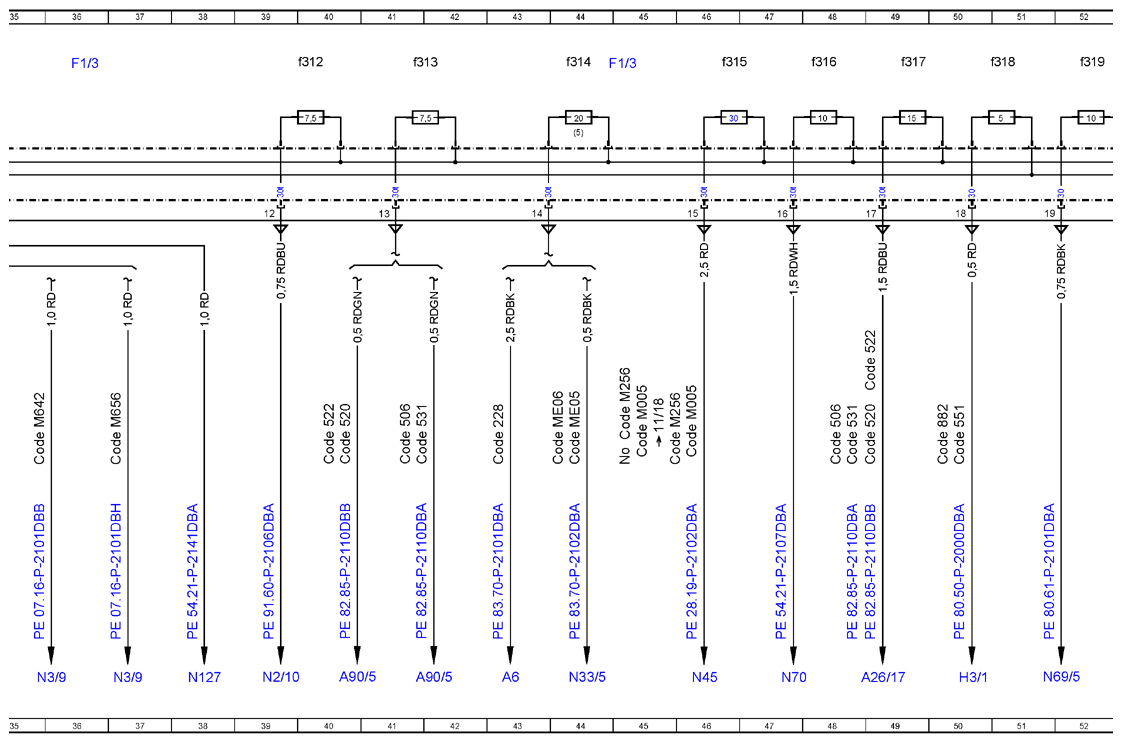

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97DBA
Model 213 up to model year 2021 Fuse box F1/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 104L |
| A1 | Instrument cluster | 56L |
| A105 | Touchpad | 80L |
| A105 | Touchpad | 90L |
| A105 | Touchpad | 91L |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 75L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 53L |
| A26/17 | Head unit | 49L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 67L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 69L |
| A40/11 | Mono multifunction camera | 61L |
| A40/12 | Head-up display | 82L |
| A40/13 | Stereo multifunction camera | 62L |
| A40/9 | Audio/COMMAND control panel | 78L |
| A6 | Stationary heater unit | 43L |
| A6/1 | Stationary heater radio remote control receiver | 95L |
| A76 | Left front reversible emergency tensioning retractor | 28L |
| A76/1 | Right front reversible emergency tensioning retractor | 27L |
| A9/5 | Electric refrigerant compressor | 84L |
| A90/5 | Multimedia connection unit | 40L |
| A90/5 | Multimedia connection unit | 42L |
| A98 | Panoramic sliding sunroof control module | 24L |
| A98/1 | Sliding roof control module | 26L |
| B38/2 | Rain/light sensor with additional functions | 19L |
| B92/12 | Short and long-range radar sensor | 76L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 15G |
| Code 222 | Electrically adjustable right front seat | 17G |
| Code 228 | Stationary heater | 2E |
| Code 228 | Stationary heater | 43G |
| Code 228 | Stationary heater | 95G |
| Code 22P | Track package | 60G |
| Code 239 | Active Distance Assist DISTRONIC | 75G |
| Code 23P | Driver assistance package | 76G |
| Code 23P | Driver assistance package | 62G |
| Code 275 | Memory package | 16G |
| Code 275 | Memory package | 17G |
| Code 275 | Memory package | 2E |
| Code 299 | PRE-SAFE® system | 28G |
| Code 299 | PRE-SAFE® system | 27G |
| Code 360 | HERMES UMTS | 22G |
| Code 362 | HERMES LTE | 22G |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 64G |
| Code 380 | Car telephony package | 81G |
| Code 386 | Comfort telephony | 69G |
| Code 386 | Comfort telephony | 68G |
| Code 401 | Seat climate control for driver and front passenger | 20G |
| Code 413 | Panoramic sliding sunroof | 2E |
| Code 413 | Panoramic sliding sunroof | 24G |
| Code 414 | Sliding roof | 2E |
| Code 414 | Sliding roof | 26G |
| Code 432 | Left and right front dynamic multicontour seat | 70G |
| Code 432 | Left and right front dynamic multicontour seat | 72G |
| Code 446 | Touchpad only | 80G |
| Code 446 | Touchpad only | 78G |
| Code 448 | Touchpad | 90G |
| Code 448 | Touchpad | 91G |
| Code 460 | Canada version | 2F |
| Code 463 | Head-up display | 83G |
| Code 494 | USA version | 2F |
| Code 506 | Audio 20 NTG 5.5 radio | 41G |
| Code 506 | Audio 20 NTG 5.5 radio | 48G |
| Code 513 | Traffic sign recognition | 61G |
| Code 520 | Audio 20 USB | 40G |
| Code 520 | Audio 20 USB | 49G |
| Code 522 | Audio 20 radio | 40G |
| Code 522 | Audio 20 radio | 49F |
| Code 531 | COMMAND APS | 42G |
| Code 531 | COMMAND APS | 48G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 50G |
| Code 581 | THERMOTRONIC automatic air conditioning | 94G |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 97G |
| Code 700 | Technical Local Content China | 2F |
| Code 873 | Seat heater for driver and front passenger | 2F |
| Code 873 | Seat heater for driver and front passenger | 20G |
| Code 882 | Interior protection and tow-away protection | 50G |
| Code 897 | Wireless mobile phone charging | 65G |
| Code 897 | Wireless mobile phone charging | 67G |
| Code 899 | Wireless phone charging at front and antenna | 63G |
| Code 902 | Seat heater Plus for driver and front passenger | 21G |
| Code B01 | 48V technology | 88G |
| Code L | LEFT-HAND DRIVE | 27G |
| Code L | LEFT-HAND DRIVE | 13G |
| Code M005 | 4MATIC | 46G |
| Code M005 | 4MATIC | 45G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 29G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 31G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 45G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 46G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 32G |
| Code M274 | SPARK-IGNITION ENGINE M274 | 33G |
| Code M642 | DIESEL ENGINE 0M642 | 35G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 34G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 37G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 44G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 84G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 2G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 58G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 87G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 2G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 58G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 87G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 44G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 84G |
| Code P21 | AIR-BALANCE package | 85G |
| Code R | RIGHT-HAND DRIVE | 28G |
| Code R | RIGHT-HAND DRIVE | 12G |
| Code U22 | Lumbar support adjustment | 71G |
| Code U22 | Lumbar support adjustment | 74G |
| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 27A |
| F1/3 | Passenger-side A-pillar fuse box | 45A |
| F1/3 | Passenger-side A-pillar fuse box | 53A |
| F1/3 | Passenger-side A-pillar fuse box | 68A |
| F1/3 | Passenger-side A-pillar fuse box | 76A |
| F1/3 | Passenger-side A-pillar fuse box | 85A |
| F1/3 | Passenger-side A-pillar fuse box | 62A |
| F1/3 | Passenger-side A-pillar fuse box | 36A |
| F1/3 | Passenger-side A-pillar fuse box | 92A |
| F1/3MF1 | Multiple fuse 1 | 60B |
| F1/3MF2 | Multiple fuse 2 | 78B |
| F1/3MF3 | Multiple fuse 3 | 87B |
| F1/3f301 | Fuse 301 | 13A |
| F1/3f302 | Fuse 302 | 15A |
| F1/3f303 | Fuse 303 | 16A |
| F1/3f304 | Fuse 304 | 18A |
| F1/3f305 | Fuse 305 | 19A |
| F1/3f306 | Fuse 306 | 21A |
| F1/3f307 | Fuse 307 | 23A |
| F1/3f308 | Fuse 308 | 24A |
| F1/3f309 | Fuse 309 | 26A |
| F1/3f310 | Fuse 310 | 28A |
| F1/3f311 | Fuse 311 | 34A |
| F1/3f312 | Fuse 312 | 40A |
| F1/3f313 | Fuse 313 | 42A |
| F1/3f314 | Fuse 314 | 44A |
| F1/3f315 | Fuse 315 | 46A |
| F1/3f316 | Fuse 316 | 48A |
| F1/3f317 | Fuse 317 | 49A |
| F1/3f318 | Fuse 318 | 51A |
| F1/3f319 | Fuse 319 | 52A |
| F1/3f320 | Fuse 320 | 53A |
| F1/3f321 | Fuse 321 | 55A |
| F1/3f322 | Fuse 322 | 56A |
| F1/3f323 | Electrical fuse 323 | 58A |
| F32/3 | Engine compartment prefuse box | 9L |
| F32/3f3 | Fuse 3 | 8K |
| F32/4 | Vehicle interior prefuse box | 5L |
| F32/4f6 | Fuse 6 | 3K |
| F63 | Pyrofuse | 89L |
| H3/1 | Alarm siren | 50L |
| N112/9 | HERMES control unit | 22L |
| N123/8 | Front mobile phone cradle control unit | 65L |
| N123/8 | Front mobile phone cradle control unit | 63L |
| N123/9 | Telephone control unit | 81L |
| N127 | Drivetrain control unit | 38L |
| N2/10 | Supplemental restraint system control unit | 39L |
| N22/4 | Rear air conditioning operating unit | 94L |
| N25/17 | Front seat heater/seat ventilation control unit | 20L |
| N25/4 | Front passenger seat heater control unit | 21L |
| N26/2 | Theft detection system control unit | 97L |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/10 | ME-SFI [ME] control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 32L |
| N3/9 | CDI control unit | 34L |
| N3/9 | CDI control unit | 37L |
| N3/9 | CDI control unit | 35L |
| N32/1 | Driver seat control unit | 16L |
| N32/15 | Left front multicontour seat control unit | 70L |
| N32/16 | Right front multicontour seat control unit | 72L |
| N32/2 | Front passenger seat control unit | 17L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 71L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 74L |
| N33/5 | High-voltage PTC heater | 44L |
| N45 | All-wheel drive control unit | 46L |
| N59 | Perfume atomizer generator | 85L |
| N69/2 | Right front door control unit | 14L |
| N69/3 | Left rear door control unit | 12L |
| N69/4 | Right rear door control unit | 13L |
| N69/5 | KEYLESS-GO control unit | 51L |
| N70 | Overhead control panel control unit | 47L |
| N73 | Electronic ignition switch control unit | 54L |
| S6/1 | Driver-side instrument panel button group | 93L |
| S7 | High-voltage disconnect device | 58L |
| S7 | High-voltage disconnect device | 87L |
| X11/4 | Diagnostic connector | 24L |
| X237/1 | Mobile phone contact plate | 68L |
| X237/1 | Mobile phone contact plate | 64L |
