(Check Charging Cable And Vehicle Socket - AP54.10-P-5458C)
Model 253.99
Show on model 253.992
| Risk of explosion caused by escaping hydrogen or overheating of the fuel tanks when working on the hydrogen system. Risk of frostbite to body parts caused by escaping gas and by touching component parts carrying gas when emptying fuel tanks. Risk of asphyxiation caused by inhalation of air diluted by hydrogen. Risk of burn injuries by coming into contact with an invisible pale blue hydrogen flame. | AS00.00-Z-0030-01B | ||
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Notes on fuel cell system | AH00.00-P-0022-01RFW | ||
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

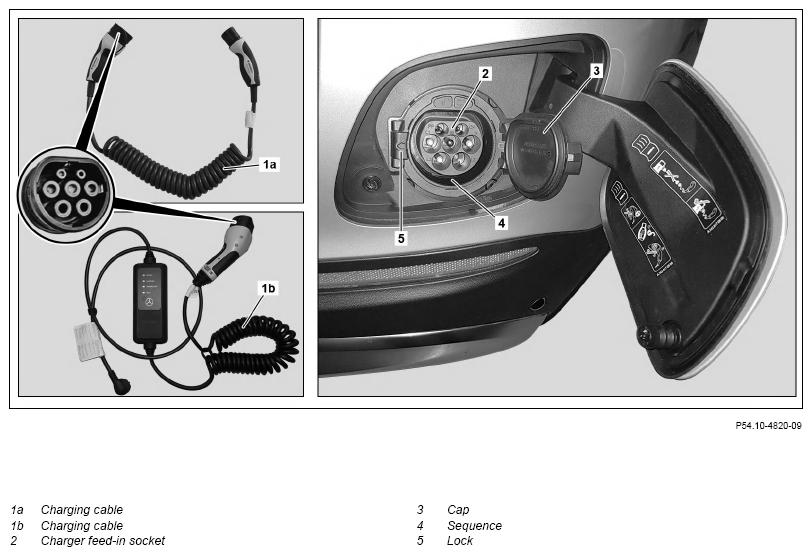

| 1 | Take charging cables (1a) and (1b) out of the vehicle. | ||
| Check | |||
| 2 | Check charging cable (1a) over the entire length, plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems occur, ↓ replace charging cable (1a). |
|
| 3 | Check charging cable (1b) over the entire length, plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If problems occur, ↓ replace charging cable (1b). |
|
| Install | |||
| 4 | Place charging cables (1a) and (1b) in vehicle. | ||
| Check | |||
| 5 | Check charger feed socket (2) for damage. | If problems occur, ↓ Replace charger feed socket (2). |
|
| 6 | Check that cap (3) is firmly seated on charger feed socket (2). | If problems occur, ↓ Replace charger feed socket (2). |
|
| 7 | Check drain (4) for clear passage and soiling. | Remove any soiling. This is because water must not collect in the charger feed socket (2) area. If problems occur, ↓ rectify the problems. |
|
| 8 | Check lock (5) by opening and closing cap (3) | If problems occur, ↓ Replace charger feed socket (2). |
