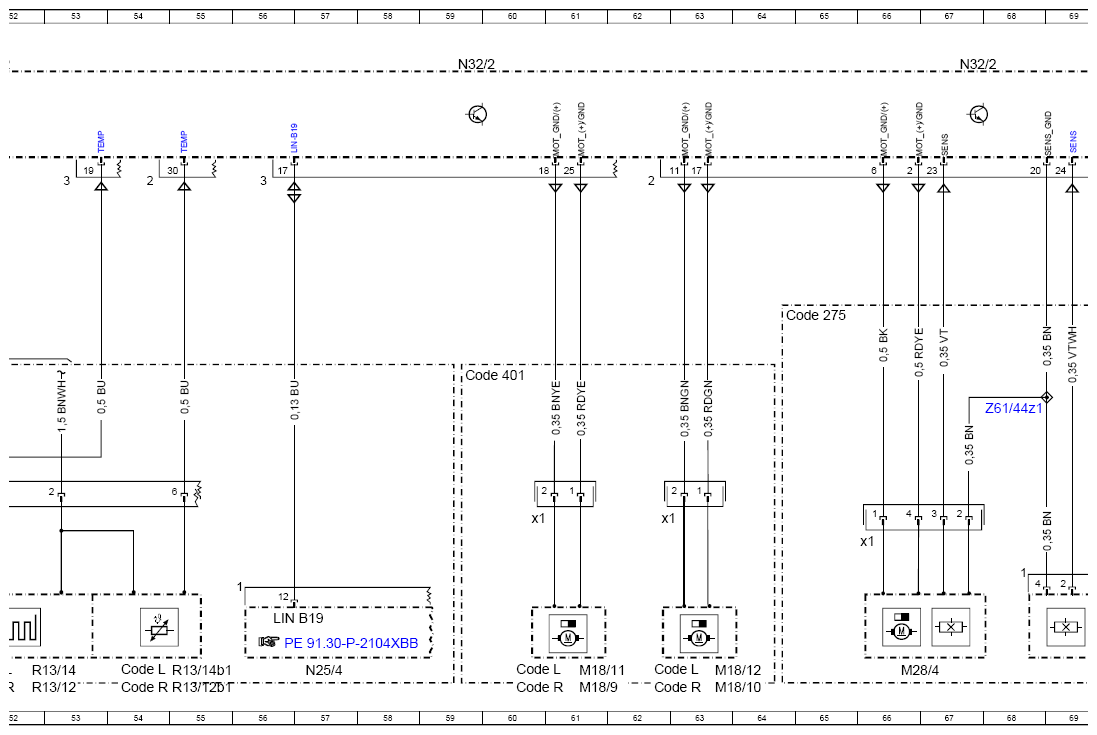

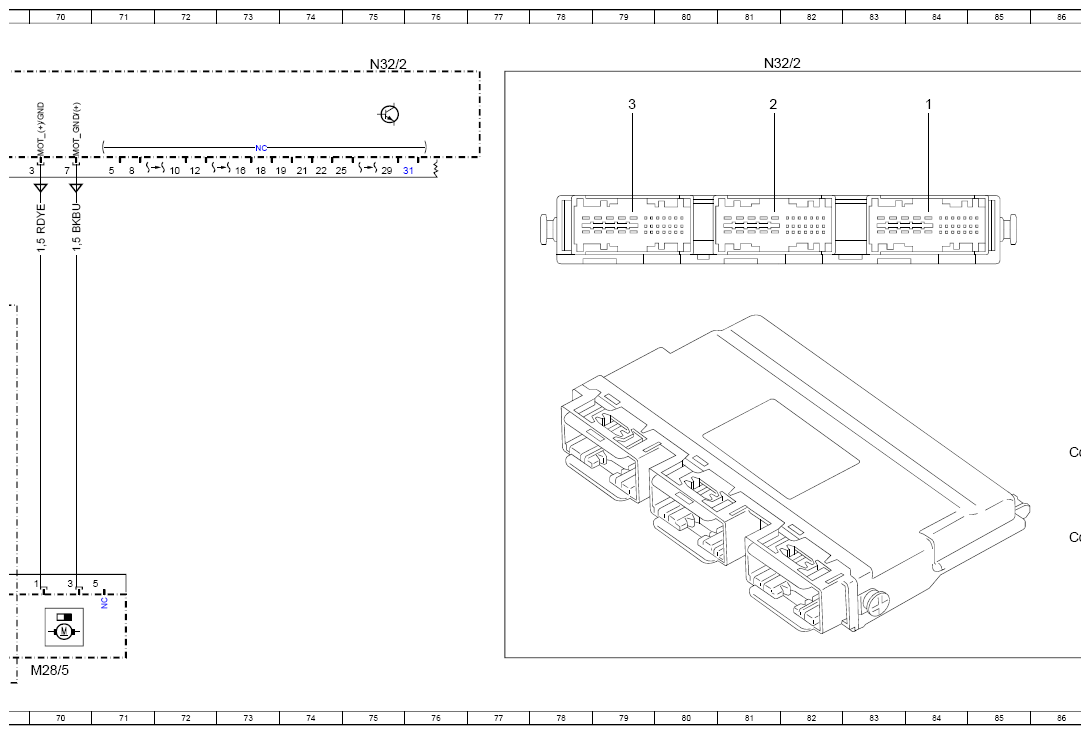

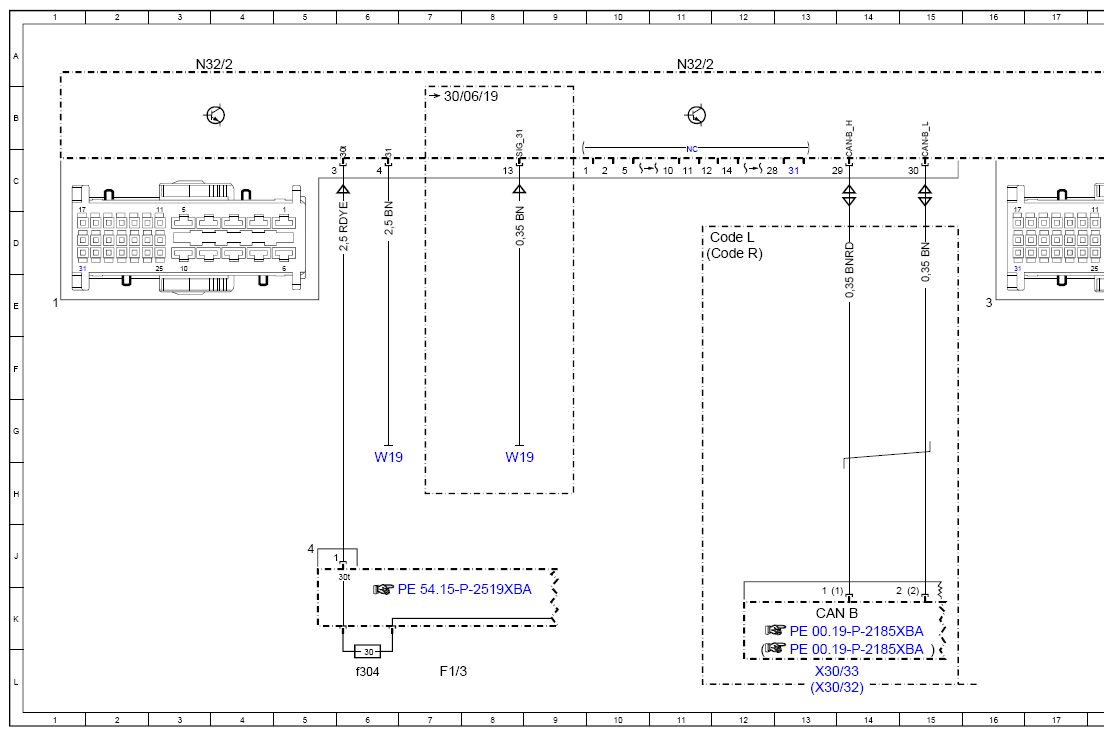

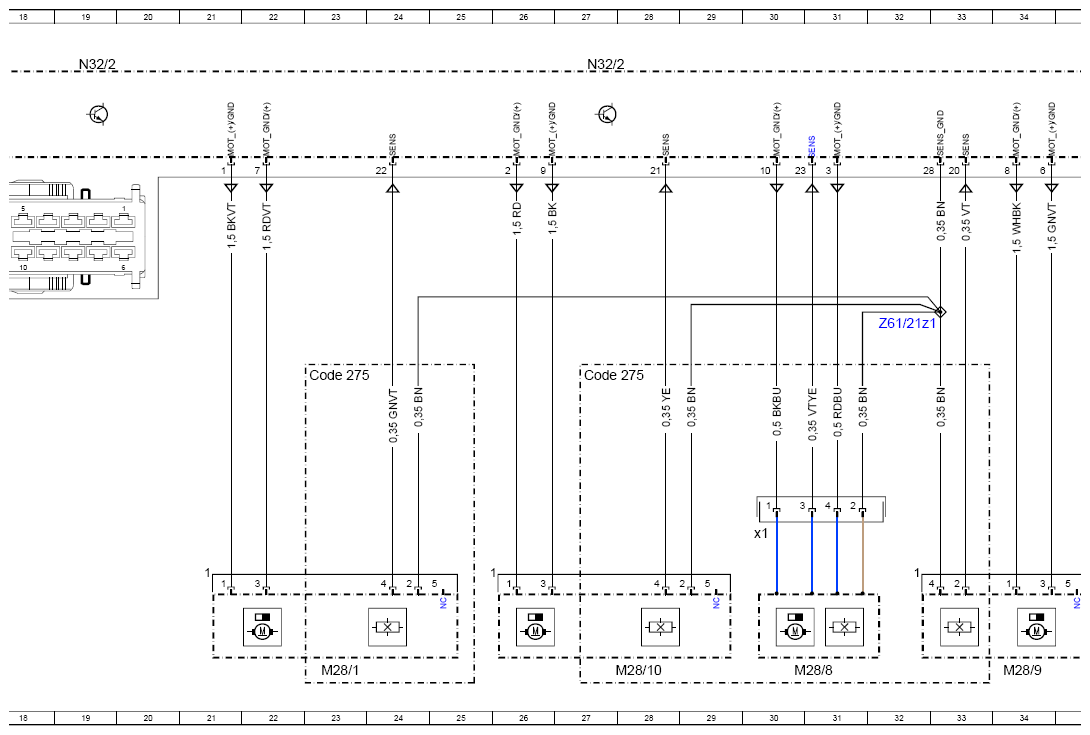

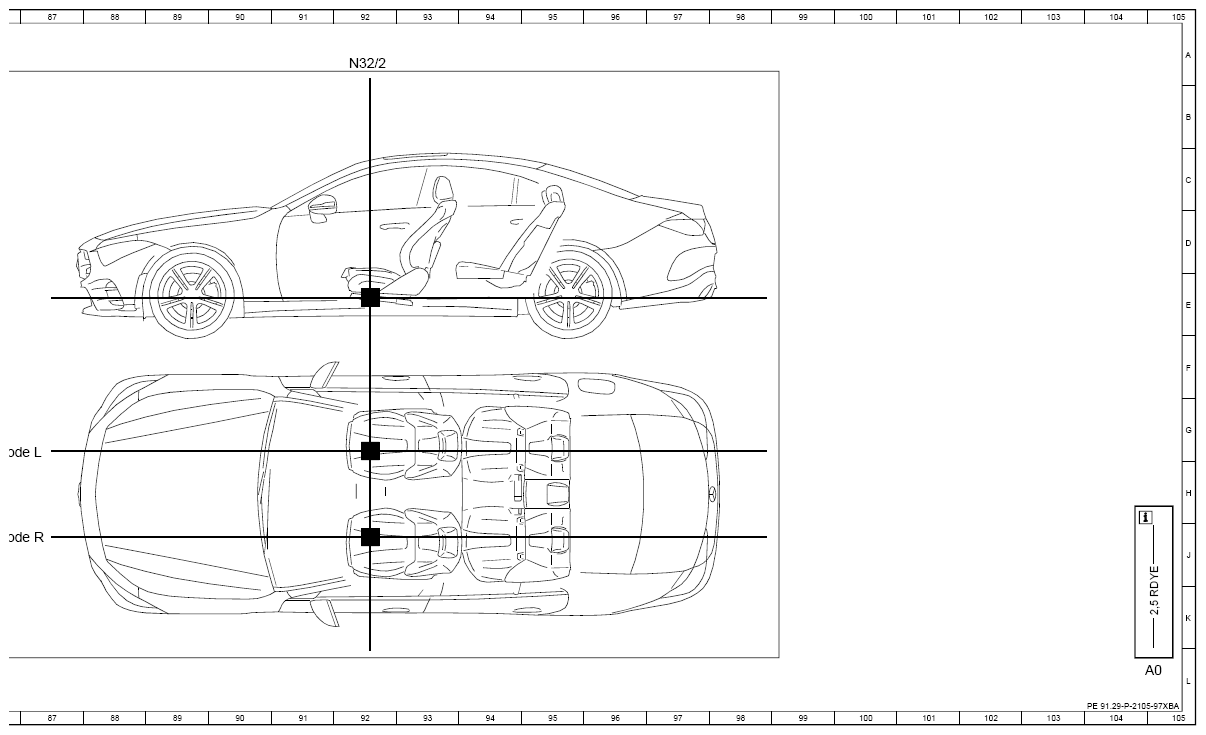

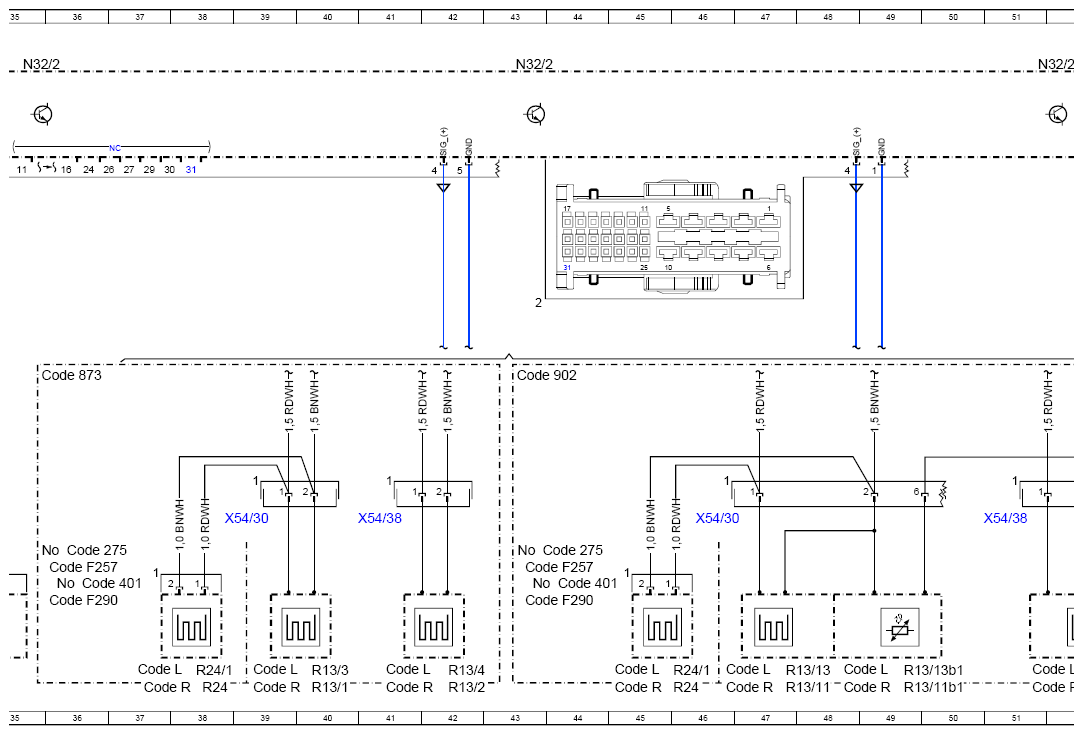

Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97XBA
Model 257, 290 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| CAN B | Interior CAN | 13K |
| Code 275 | Memory package | 23F |
| Code 275 | Memory package | 27F |
| Code 275 | Memory package | 64E |
| Code 275 | Memory package | 43J |
| Code 275 | Memory package | 36J |
| Code 401 | Seat climate control for driver and front passenger | 59F |
| Code 401 | Seat climate control for driver and front passenger | 44K |
| Code 401 | Seat climate control for driver and front passenger | 36K |
| Code 873 | Seat heater for driver and front passenger | 35F |
| Code 902 | Seat heater Plus for driver and front passenger | 43F |
| Code F257 | MODEL SERIES 257 | 43J |
| Code F257 | MODEL SERIES 257 | 36J |
| Code F290 | Model series 290 | 43K |
| Code F290 | Model series 290 | 36K |
| Code L | LEFT-HAND DRIVE | 11D |
| Code L | LEFT-HAND DRIVE | 37L |
| Code L | LEFT-HAND DRIVE | 39L |
| Code L | LEFT-HAND DRIVE | 41L |
| Code L | LEFT-HAND DRIVE | 45L |
| Code L | LEFT-HAND DRIVE | 46L |
| Code L | LEFT-HAND DRIVE | 48L |
| Code L | LEFT-HAND DRIVE | 51L |
| Code L | LEFT-HAND DRIVE | 54L |
| Code L | LEFT-HAND DRIVE | 60L |
| Code L | LEFT-HAND DRIVE | 62L |
| Code L | LEFT-HAND DRIVE | 86G |
| Code R | RIGHT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 37L |
| Code R | RIGHT-HAND DRIVE | 39L |
| Code R | RIGHT-HAND DRIVE | 41L |
| Code R | RIGHT-HAND DRIVE | 45L |
| Code R | RIGHT-HAND DRIVE | 46L |
| Code R | RIGHT-HAND DRIVE | 48L |
| Code R | RIGHT-HAND DRIVE | 51L |
| Code R | RIGHT-HAND DRIVE | 54L |
| Code R | RIGHT-HAND DRIVE | 60L |
| Code R | RIGHT-HAND DRIVE | 62L |
| Code R | RIGHT-HAND DRIVE | 86J |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3f304 | Fuse 304 | 6L |
| LIN B19 | Front passenger seat LIN | 56K |
| M18/10 | Left front backrest seat ventilation motors | 63L |
| M18/11 | Right front seat cushion seat ventilation motors | 61L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 60H |
| M18/12 | Right front backrest seat ventilation motors | 63L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 62H |
| M18/9 | Left front seat cushion seat ventilation motors | 61L |
| M28/1 | Front passenger seat fore/aft adjustment motor | 23L |
| M28/10 | Front passenger seat height adjustment motor | 28L |
| M28/4 | Front passenger seat head restraint adjustment motor | 66L |
| M28/4x1 | Head restraint adjustment motor electrical connector, front passenger seat | 66J |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 70L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 30L |
| M28/8x1 | Seat cushion length adjustment motor electrical connector, front passenger | 30J |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 34L |
| N25/4 | Front passenger seat heater control unit | 57L |
| N32/2 | Front passenger seat control unit | 3A |
| N32/2 | Front passenger seat control unit | 19A |
| N32/2 | Front passenger seat control unit | 43A |
| N32/2 | Front passenger seat control unit | 81A |
| N32/2 | Front passenger seat control unit | 92A |
| N32/2 | Front passenger seat control unit | 11A |
| N32/2 | Front passenger seat control unit | 35A |
| N32/2 | Front passenger seat control unit | 27A |
| N32/2 | Front passenger seat control unit | 52A |
| N32/2 | Front passenger seat control unit | 59A |
| N32/2 | Front passenger seat control unit | 67A |
| N32/2 | Front passenger seat control unit | 75A |
| R13/1 | Left front seat cushion heater pad | 40L |
| R13/11 | Left front seat cushion side bolster heater pad | 47L |
| R13/11b1 | Left front seat cushion side bolster heater pad temperature sensor | 49L |
| R13/12 | Left front seat backrest side bolster heater pad | 52L |
| R13/12b1 | Left front seat backrest side bolster heater pad temperature sensor | 55L |
| R13/13 | Right front seat cushion side bolster heater pad | 47L |
| R13/13b1 | Right front seat cushion side bolster heater pad temperature sensor | 49L |
| R13/14 | Right front seat backrest side bolster heater pad | 52L |
| R13/14b1 | Right front seat backrest side bolster heater pad temperature sensor | 55L |
| R13/2 | Left front seat backrest heater pad | 42L |
| R13/3 | Right front seat cushion heater pad | 40L |
| R13/4 | Right front seat backrest heater pad | 42L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 38L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 46L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 38L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 46L |
| W19 | Right front seat crossmember ground point | 6G |
| W19 | Right front seat crossmember ground point | 8G |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 13L |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 13L |
| X54/30 | Front passenger seat heater electrical connector | 39H |
| X54/30 | Front passenger seat heater electrical connector | 46H |
| X54/38 | Front passenger seat heater electrical connector | 41H |
| X54/38 | Front passenger seat heater electrical connector | 51H |
| Z61/21z1 | Ground connection connector sleeve | 32E |
| Z61/44z1 | Ground connection connector sleeve | 68G |
