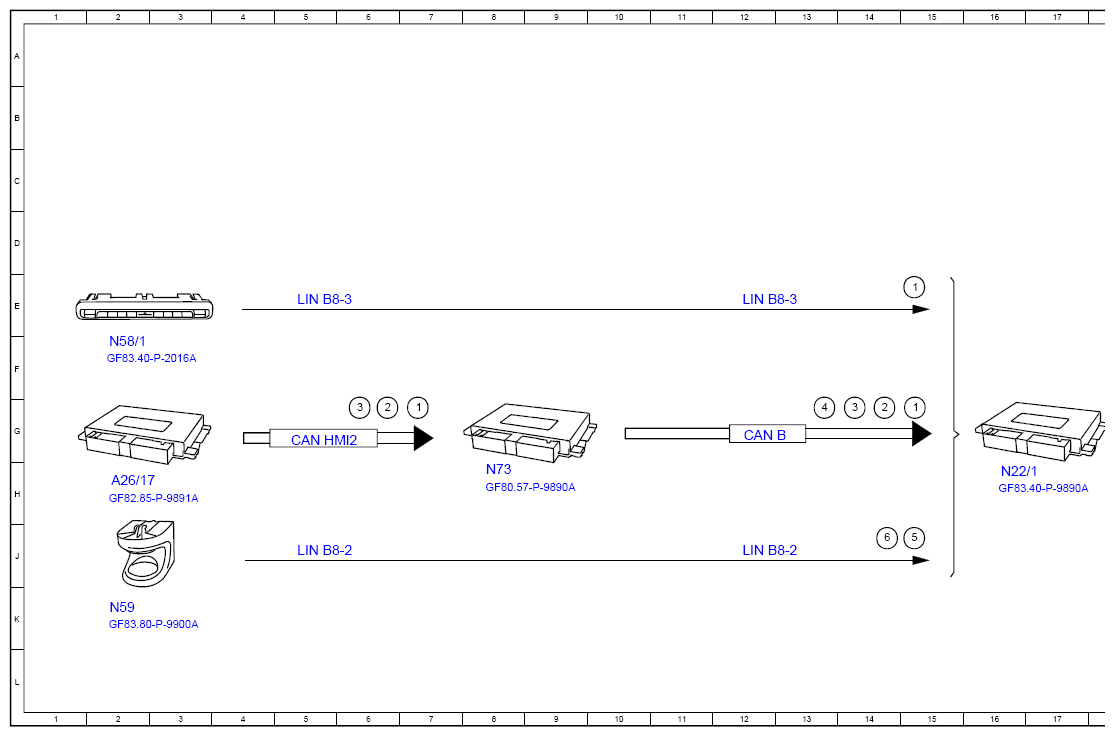

Function Schematic For Actuating Fragrance System Generator - PE83.80-P-2501-97D
Model 213, 238, 257, 290 as of model year 2021 with code P21 (Air quality package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 15G |
| 1 | Operation, signal | 15E |
| 1 | Operation, signal | 7G |
| 2 | Perfume atomizer intensity, request | 7G |
| 2 | Perfume atomizer intensity, request | 14G |
| 3 | Switch on perfume atomizer, request | 5G |
| 3 | Switch on perfume atomizer, request | 13G |
| 4 | Circuit 15, status | 13G |
| 5 | Glove compartment lamp switch, status | 15J |
| 6 | Fragrance system, status | 14J |
| 7 | Perfume atomizer generator, actuation | 21G |
| A26/17 | Head unit | 2H |
| CAN B | Interior CAN | 12G |
| CAN HMI2 | User interface CAN 2 | 5G |
| LIN B8-2 | LIN 2 for climate control system | 19G |
| LIN B8-2 | LIN 2 for climate control system | 12J |
| LIN B8-2 | LIN 2 for climate control system | 5J |
| LIN B8-3 | LIN 3 for climate control system | 12E |
| LIN B8-3 | LIN 3 for climate control system | 5E |
| N22/1 | Climate control control unit | 16H |
| N58/1 | Climate control operating unit | 2F |
| N59 | Perfume atomizer generator | 2K |
| N59 | Perfume atomizer generator | 21H |
| N73 | Electronic ignition switch control unit | 8H |
