Adjust Linkage For Brake Pedal - AR86.20-P-0008-01LWE
Model 213, 257
with code 45P (Disability conversion - Sales control code) "Classic"
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BE86.20-P-1005-01A | Brake linkage play | mm | <2 | <2 |
DISABILITY EQUIPMENT
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA86.20-P-1016-04A | Counternut, brake linkage to control lever (Classic/Easy Speed/Multima PRO) | Nm | 25 | 25 |

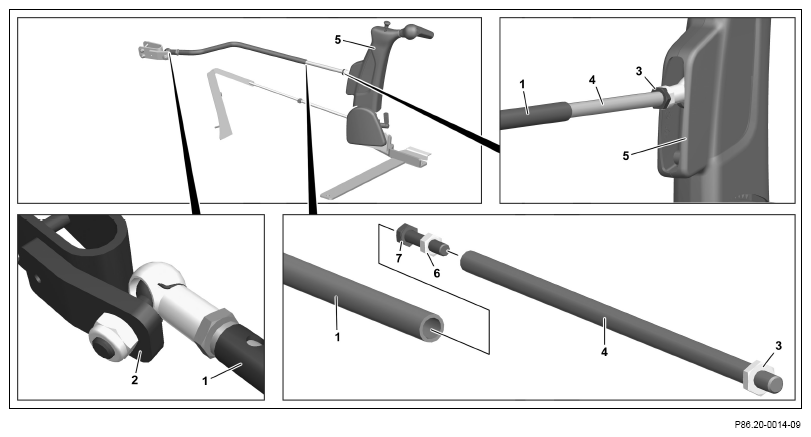

- Detach ball head of pipe (1) at driver (2).
- Release counternut (3) and fully remove rod (4) from joint eye of control lever (5).
- Remove rod (4) from pipe (1).
- Release counternut (6) and accordingly adjust length of brake linkage by turning screw (7).
- Tighten counternut (6) and insert rod (4) into pipe (1).
- Fully screw rod (4) into joint eye of control lever (5) and tighten counternut (3) with
box wrench.
- Attach ball head of pipe (1) at driver (2).
- Check setting of brake linkage.
If a problem arises
↓
Repeat operation steps 1 to 7.
