Adjust Linkage For Accelerator Pedal - AR86.20-P-0008-02LWE

Model 213, 257

with code 45P (Disability conversion - Sales control code) "Classic"

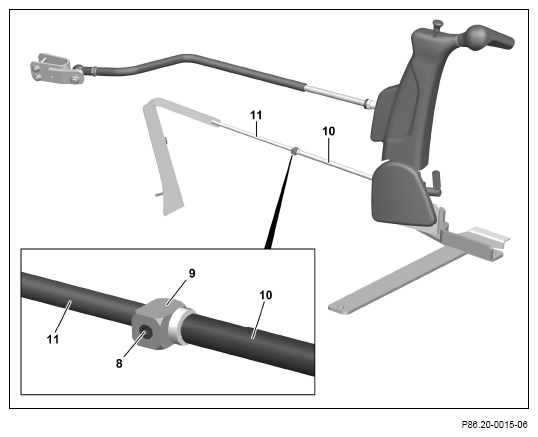

1. Release screw (8).
2. Slide end stop (9) for a non-actuated accelerator pedal against pipe (10) and tighten screw (8).
3. Check setting of accelerator pedal linkage.

   If a problem arises

   ↓

   Repeat setting and in this connection insert rod (11) further into pipe (10) or pull further out of pipe (10).

   Courtesy of MERCEDES-BENZ USA
