Removing And Installing Loudspeaker In Instrument Panel - AR82.62-P-7833FR
Model 257, 290
with code 360 (HERMES UMTS)
Model 257, 290
with code 362 (HERMES communications module LTE)
Model 257, 290
with code 810 (Premium sound system)
Model 257, 290
with code 811 (High-End sound system)

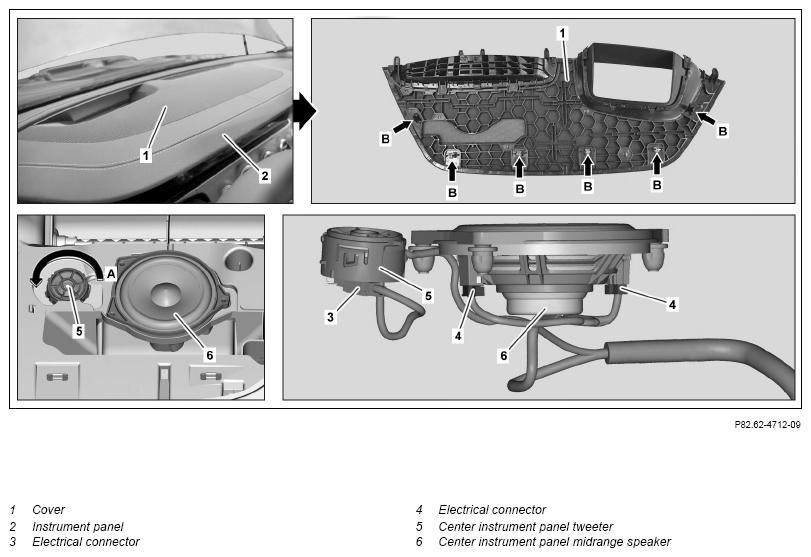

Shown on model 257 with code 811 (Advanced Sound System)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Unclip cover (1) on instrument panel (2) (arrows B). | Fig 1 | |
| 3 | Turn center instrument panel tweeter (5) counterclockwise in direction of arrow (A) and remove upwards. | Model 257, 290 with code 811 (High-End sound system) |
|
| 4 | Disconnect electrical connector (3) and remove center instrument panel tweeter (5). | Model 257, 290 with code 811 (High-End sound system) |
|
| 5 | Pull center instrument panel mid-range speaker (6) upwards out of mount. | Fig 2 | |
| 6 | Disconnect electrical connectors (4) and remove center instrument panel mid-range speaker (6). | ||
| 7 | Install in the reverse order. |
