Remove/Install Windshield Wiper System - AR82.30-P-0001FR

Model 257, 290

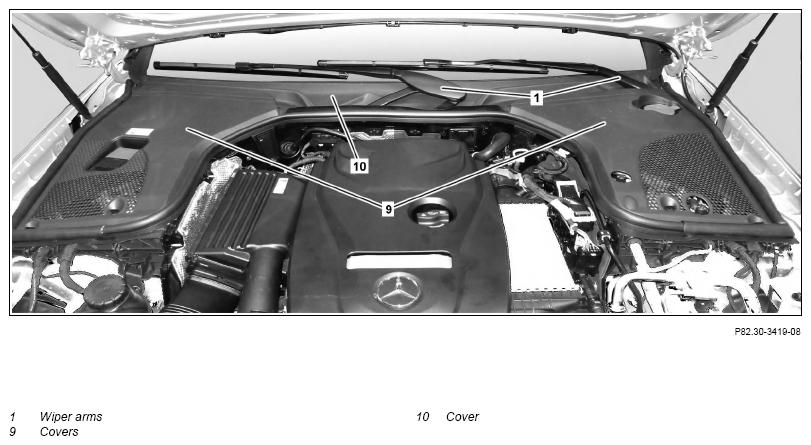

Shown on model 257

G14549559Courtesy of MERCEDES-BENZ USA

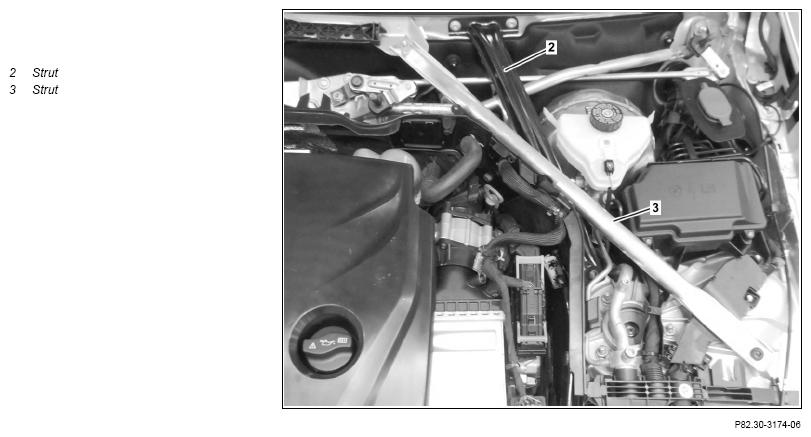

Shown on model 257

G14549560Courtesy of MERCEDES-BENZ USA

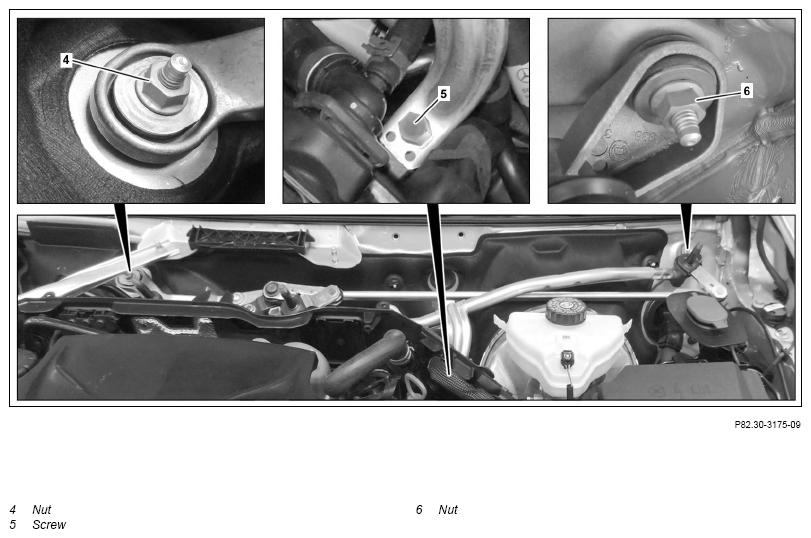

Shown on model 257

G14549561Courtesy of MERCEDES-BENZ USA

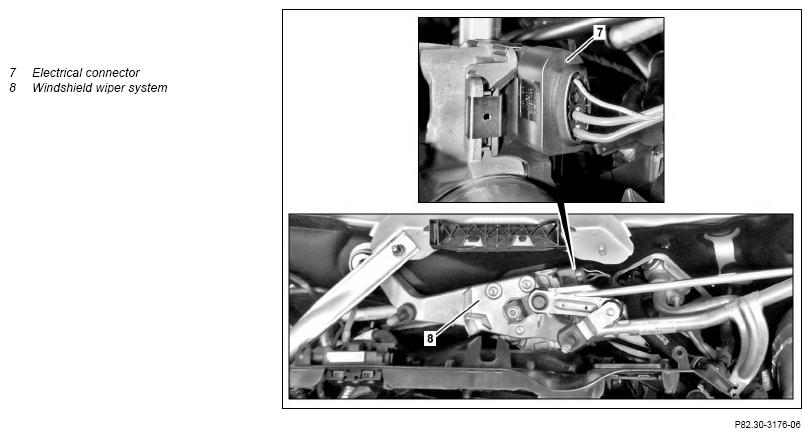

Shown on model 257

G14549562Courtesy of MERCEDES-BENZ USA
WARNING Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). AS82.30-Z-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove wiper arms (1).   AR82.30-P-6100FR
2 Remove covers (9).
3 Remove cover (10).
4 Remove strut (3). TORQUE SPECIFICATION Screw/bolt, upper struts to suspension strut tower mounting bracket *BA62.30-P-1001-02K
    TORQUE SPECIFICATION Nut, upper struts to firewall *BA62.30-P-1002-02K
5 Remove strut (2). TORQUE SPECIFICATION Screw/bolt, lower strut to suspension strut tower mounting bracket *BA62.30-P-1003-02K
    TORQUE SPECIFICATION Screw/bolt, lower strut to firewall *BA62.30-P-1004-02K
6 Remove nuts (4, 6). TORQUE SPECIFICATION Nut, windshield wiper system to body *BA82.30-P-1003-01M
7 Remove screw (5). TORQUE SPECIFICATION Screw/bolt, windshield wiper system to bracket *BA82.30-P-1002-01M
8 Lift up windshield wiper system (8) and disconnect electrical connector (7).
9 Remove windshield wiper system (8).
10 Install in the reverse order.
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1 Nm 35 35
Stage 2 Nm 50 50
Stage 3 Loosen ∠° 180 180
Stage 4 Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1002-02K Nut, upper struts to firewall Nm 35 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1003-02K Screw/bolt, lower strut to suspension strut tower mounting bracket Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1004-02K Screw/bolt, lower strut to firewall Nm 23 23
WINDSHIELD WIPER

Number Designation Model 257 Model 290
BA82.30-P-1002-01M Screw/bolt, windshield wiper system to bracket Nm 10 10
WINDSHIELD WIPER

Number Designation Model 257 Model 290
BA82.30-P-1003-01M Nut, windshield wiper system to body Nm 20 20
