Remove/Install WiFi Antenna In Right Of Instrument Panel - AR82.85-P-0014FR

Model 257, 290

as of model year 2021

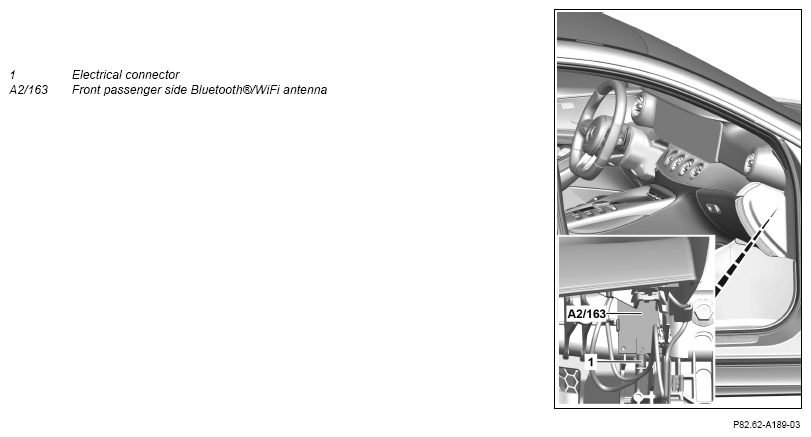

Shown on model 290 with code 801 (YoM 20/1)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Unclip trim from right instrument panel.	Ensure that edge guard is positioned correctly in working area. Dismantling tool	Fig 1
3	Remove front passenger side Bluetooth®/WiFi antenna (A2/163) from crossmember.	Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. Dismantling tool	Fig 1
4	Release and disconnect electrical connector (1) and remove front passenger side Bluetooth®/WiFi antenna (A2/163).
5	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
