Remove/Install WiFi Antenna In Left Of Instrument Panel - AR82.85-P-0012FR
Model 257, 290
as of model year 2021
Shown on model 290 with code 801 (YoM 20/1)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove driver's side fuse and relay module (K40/6) with connected electric lines. | AR54.15-P-0003FR | |
| 3 | Remove damping behind driver's side fuse and relay module (K40/6). | ||
| 4 | Remove driver's side Bluetooth®/WiFi antenna (A2/161) from crossmember. | Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. |

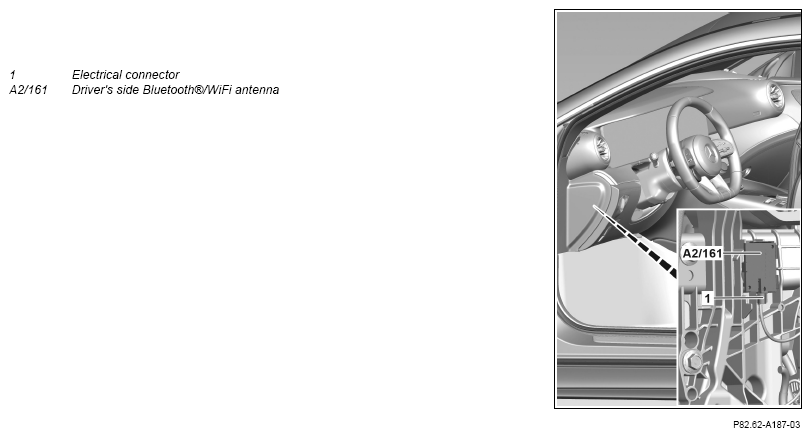

Fig 1 |
| 5 | Release and disconnect electrical connector (1) and remove driver's side Bluetooth®/WiFi antenna (A2/161). | ||
| 6 | Install in the reverse order. |
