Remove/Install VICS Control Unit - AR82.60-P-0003FR
Model 257, 290
with code 498 (Japanese version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

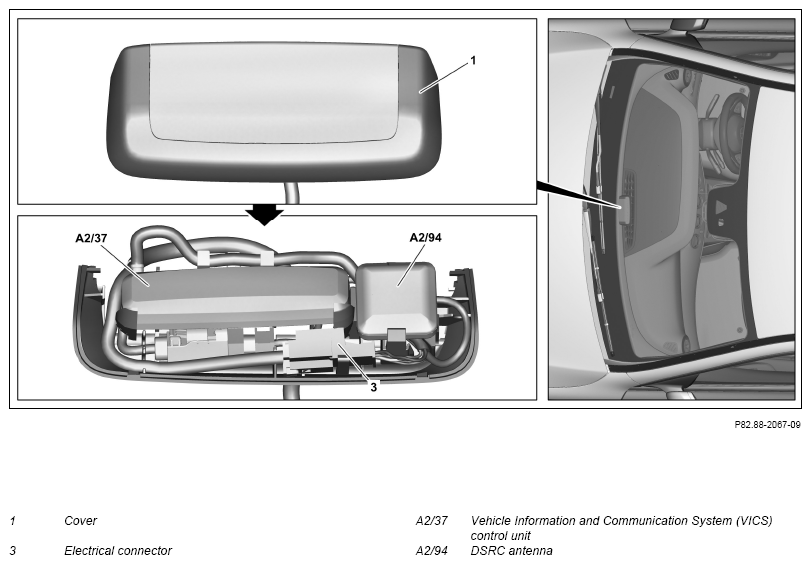

| 2 | Unclip cover (1). | Fig 1 | |
| 3 | Unclip DSRC antenna (A2/94) and place to one side with attached electric line. | ||
| 4 | Disconnect electrical connector (3). | ||
| 5 | Unclip and remove Vehicle Information and Communication System (VICS) control unit (A2/37). | ||
| 6 | Install in the reverse order. |
