Remove/Install Telephone Antenna Splitter - AR82.70-P-8956FR
Model 257, 290
with code 899 (Multifunction telephony)
Model 290
with code 360 (HERMES UMTS)
Model 290
with code 362 (HERMES communications module LTE)
Model 290
with code 364 (HERMES - UMTS communications module for Russia)
Model 290
with code 380 (Car telephony package)
Model 290
with code 503 (Remote-controlled parking)
Model 290
with code B24 (Remote control for Auxiliary heating)

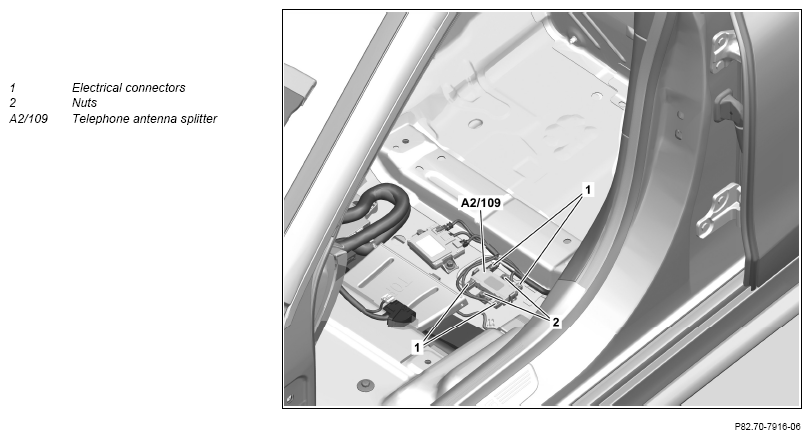

Shown on model 257 with code 899 (Multifunction telephony)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door sill at front left and rear left. | ||
| 2 | Remove left front seat. | AR91.10-P-1000FR | |
| 3 | Release B-pillar trim at bottom left. | AR68.30-P-4700FR | |
| 4 | Release floor covering at rear left and fold to one side. | ||
| 5 | Unscrew nuts (2). | ||
| 6 | Disconnect electrical connector (1) then release and remove telephone antenna splitter (A2/109). | ||
| 7 | Install in the reverse order. |
